LF200B (2023)
UPPER CASING

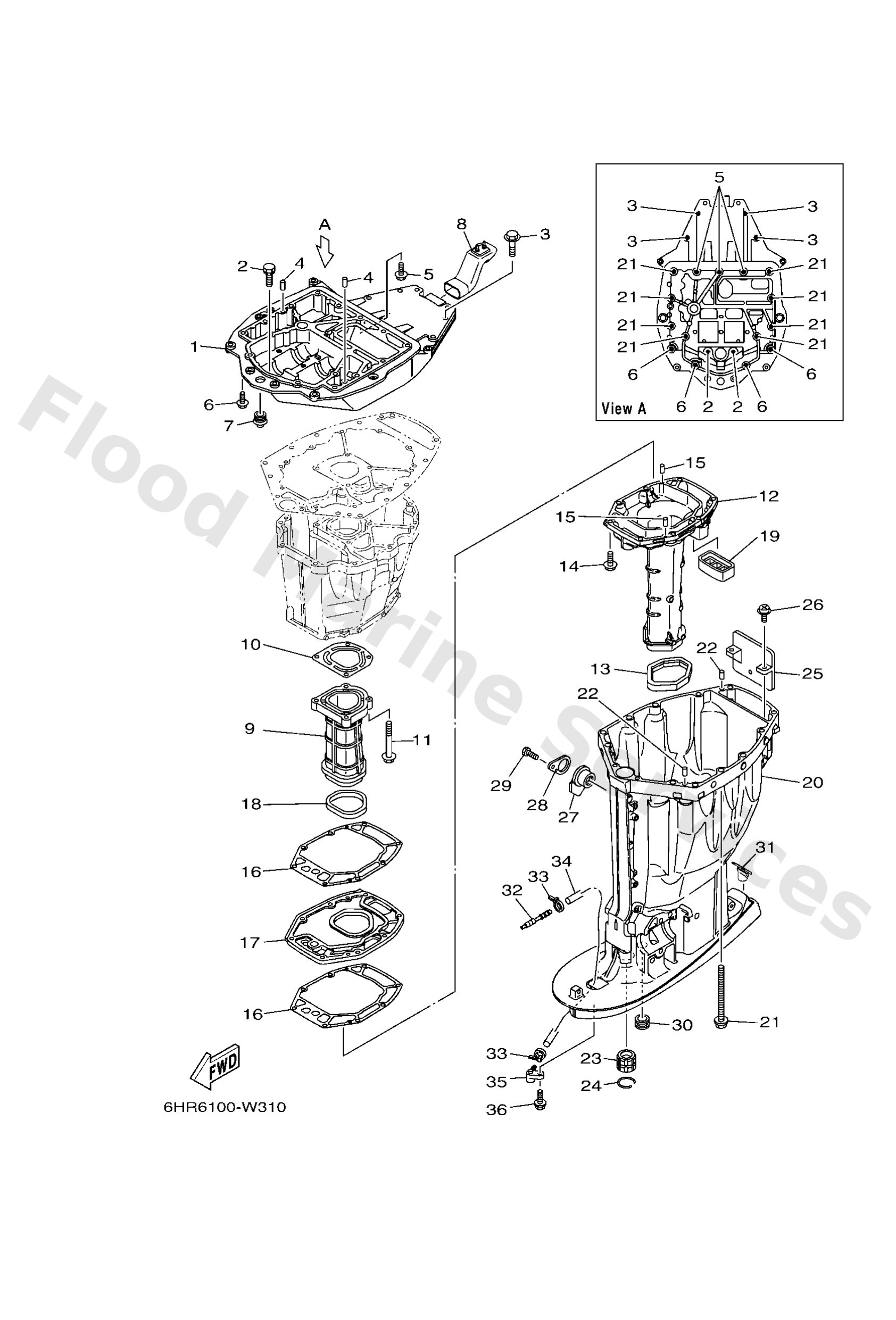

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
63P4113706
Guide, exhaust
Loading…
↗
2
9011908182
Bolt, with washer
Loading…
↗
3
97E7510545
Bolt, hexagon w/w deep recess
Loading…
↗
4
9360816M16
Pin, dowel(6t4)
Loading…
↗
5
9011908189
Bolt, with washer
Loading…
↗
6
97E7510535
Bolt, hexagon w/w deep recess
Loading…
↗
7
6E54272401
Grommet
Loading…
↗
8
6DA4276901
Seal, rubber
Loading…
↗
9
63P4113102
Manifold, ext. 1
Loading…
↗
10
63P41133A0
Gasket, exhaust manifold 1
Loading…
↗
11
97E7508560
Bolt, hexagon w/w deep recess
Loading…
↗
12
6DA1471101
X(25.3")
Muffler 1
Loading…
↗
12
6DA1471111
L(20.3")
Muffler 1
Loading…
↗
13
69J4512300
Gasket, muffler
Loading…
↗
14
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
15
9360619M23
Pin, dowel
Loading…
↗
16
63P41134A1
Gasket, exhaust manifold
Loading…
↗
17
63P4518102
Plate
Loading…
↗
18
63P4113800
Seal, ext. 1
Loading…
↗
19
69J4512701
Seal
Loading…
↗
20
6DA45111108D
L(20.3")
Casing, upper
Loading…
↗
20
6DA45111018D
X(25.3")
Casing, upper
Loading…
↗
21
9011910007
Bolt, with washer
Loading…
↗
23
6E54531800
Bushing, drive shaft 3
Loading…
↗
24
9342036M01
Circlip (6a0)
Loading…
↗
25
69J1462401
Cover, exhaust
Loading…
↗
26
9798006216
Screw, with washer(6h2)
Loading…
↗
27
6BB1531601
X(25.3")
Damper 1
Loading…
↗
28
6BB4515201
X(25.3")
Cover, upper casing 2
Loading…
↗
29
97D9506012
X(25.3")
Bolt, hexagon deep recess
Loading…
↗
30
6E54436601
Damper, water seal 2
Loading…
↗
31
6DA4515501
X(25.3")
Cap
Loading…
↗
31
6C54515501
L(20.3")
Cap
Loading…
↗
32
6E58355800
End, nipple
Loading…
↗
33
9046511M10
Clamp
Loading…
↗
34
9044507018
Hose (l1457)
Loading…
↗
35
63P4537900
Nipple, hose
Loading…
↗
36
9011906287
Bolt, with washer
Loading…
↗
