VF115A (2022)
UPPER CASING

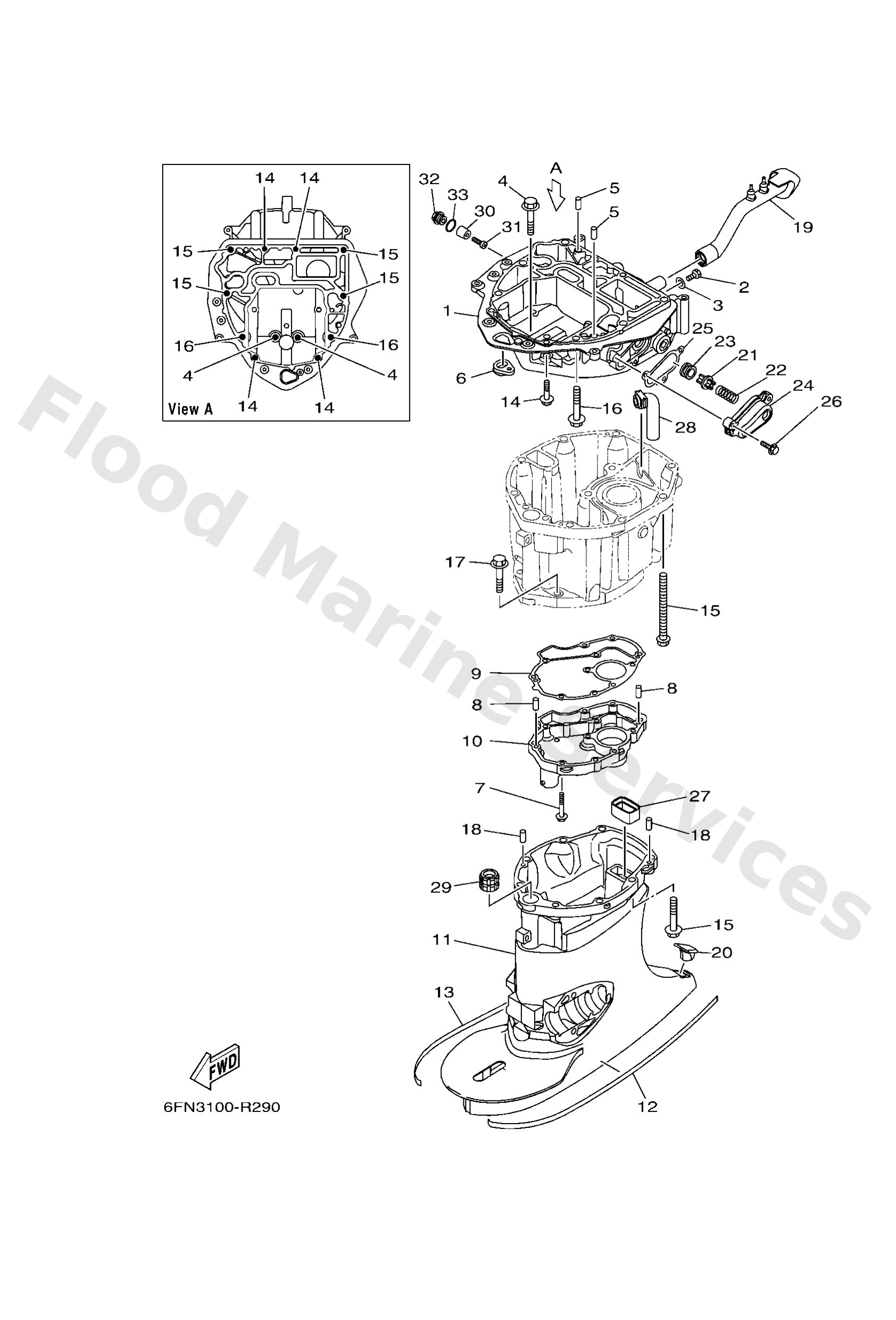

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6EK4113701
Guide, exhaust
Loading…
↗
2
97D9508014
Bolt, hexagon deep recess
Loading…
↗
3
9043008143
Gasket (256-11198-00)
Loading…
↗
4
97E7510545
Bolt, hexagon w/w deep recess
Loading…
↗
5
9360812M05
Pin, dowel b (6e5)
Loading…
↗
6
6EK4272701
Grommet
Loading…
↗
7
95D9506030
Bolt, flange deep recess
Loading…
↗
8
9360612019
Pin, dowel (614)
Loading…
↗
9
6EK4113400
Gasket, exhaust manifold
Loading…
↗
10
6EK4518101
Plate
Loading…
↗
11
6EK45111008D
L(20.3")
Casing, upper
Loading…
↗
11
6EK45111108D
X(25.3")
Casing, upper
Loading…
↗
12
6N94279141
Mark 1
Loading…
↗
13
6N94279241
Mark 2
Loading…
↗
14
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
15
9011910007
Bolt, with washer
Loading…
↗
19
6EK4276901
Seal, rubber
Loading…
↗
20
6C54515501
Cap
Loading…
↗
21
6G51241600
Valve, pressure control
Loading…
↗
22
90501200A2
Spring, compression
Loading…
↗
23
9048020M05
Grommet (688)
Loading…
↗
24
6EK1246A009S
Cover 1
Loading…
↗
25
6EK12435A0
Gasket
Loading…
↗
26
95D9506025
Bolt, flange deep recess
Loading…
↗
27
67F4512700
Seal
Loading…
↗
28
6EK4513500
Pipe
Loading…
↗
29
6EK4531800
X(25.3")
Bushing, drive shaft
Loading…
↗
30
6G81132500
Anode
Loading…
↗
31
9898005025
Screw, panhead (a93)
Loading…
↗
32
6G811197A0
Plug, blind
Loading…
↗
33
9321013M63
O-ring (6g8)
Loading…
↗
