Z150QETO (2002)
UPPER CASING

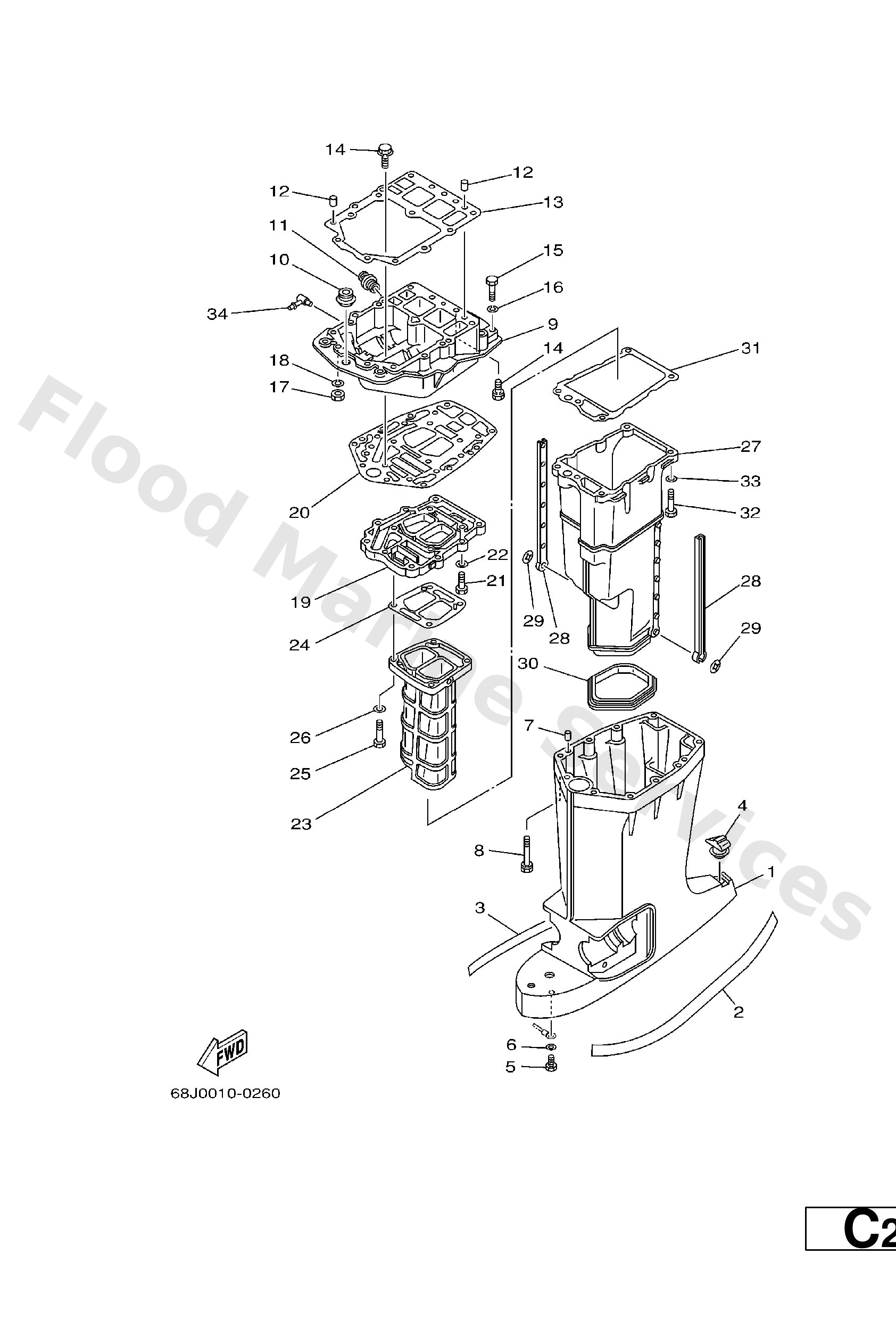

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6E5--45111--02--8D
L
Casing, upper
Loading…
↗
2
6N9--42791--40
Mark 1
Loading…
↗
3
6N9--42792--40
Mark 2
Loading…
↗
4
6E5--45155--00
Cap
Loading…
↗
5
97095--06010
Bolt
Loading…
↗
6
92995--06600
Washer, plain (646)
Loading…
↗
7
93608--12M05
Pin, dowel b (6e5)
Loading…
↗
8
90119--08027
Bolt, with washer
Loading…
↗
9
6G5--41137--11--94
FLUSHING KIT
Guide, exhaust
Loading…
↗
10
6E5--42724--00
Grommet
Loading…
↗
11
6G5--12581--00
Joint, hose
Loading…
↗
13
68F4511300
Gasket, upper casing
Loading…
↗
14
90119--08M79
Bolt, hexagon (fj1)
Loading…
↗
15
97095--08045
Bolt, hexagon
Loading…
↗
16
92995--08100
Ybs67-8 washer, spring
Loading…
↗
17
95380--08700
Nut(661)
Loading…
↗
19
6G5--41131--01--5B
Manifold, ext. 1
Loading…
↗
20
6G5--45114--A0
Gasket, upper casing
Loading…
↗
21
97095--08030
Bolt, hexagon (fj1)
Loading…
↗
22
92995--08600
Washer, plain (663)
Loading…
↗
23
64D--41132--00--5B
Manifold, exhaust
Loading…
↗
24
6G5--41134--A0
Gasket, exhaust manifold
Loading…
↗
27
6E5--14711--01--5B
Muffler 1
Loading…
↗
28
6E5--14737--00
Damper, muffler
Loading…
↗
29
90183--05M02
Nut, spring (6e5)
Loading…
↗
30
6E5--45123--00
Gasket, muffler
Loading…
↗
31
6E5--41135--A0
Gasket, exhaust manifold
Loading…
↗
34
6H1--11372--00
FLUSHING KIT
Nipple, hose
Loading…
↗
