Z300AETO (2006)
UPPER CASING

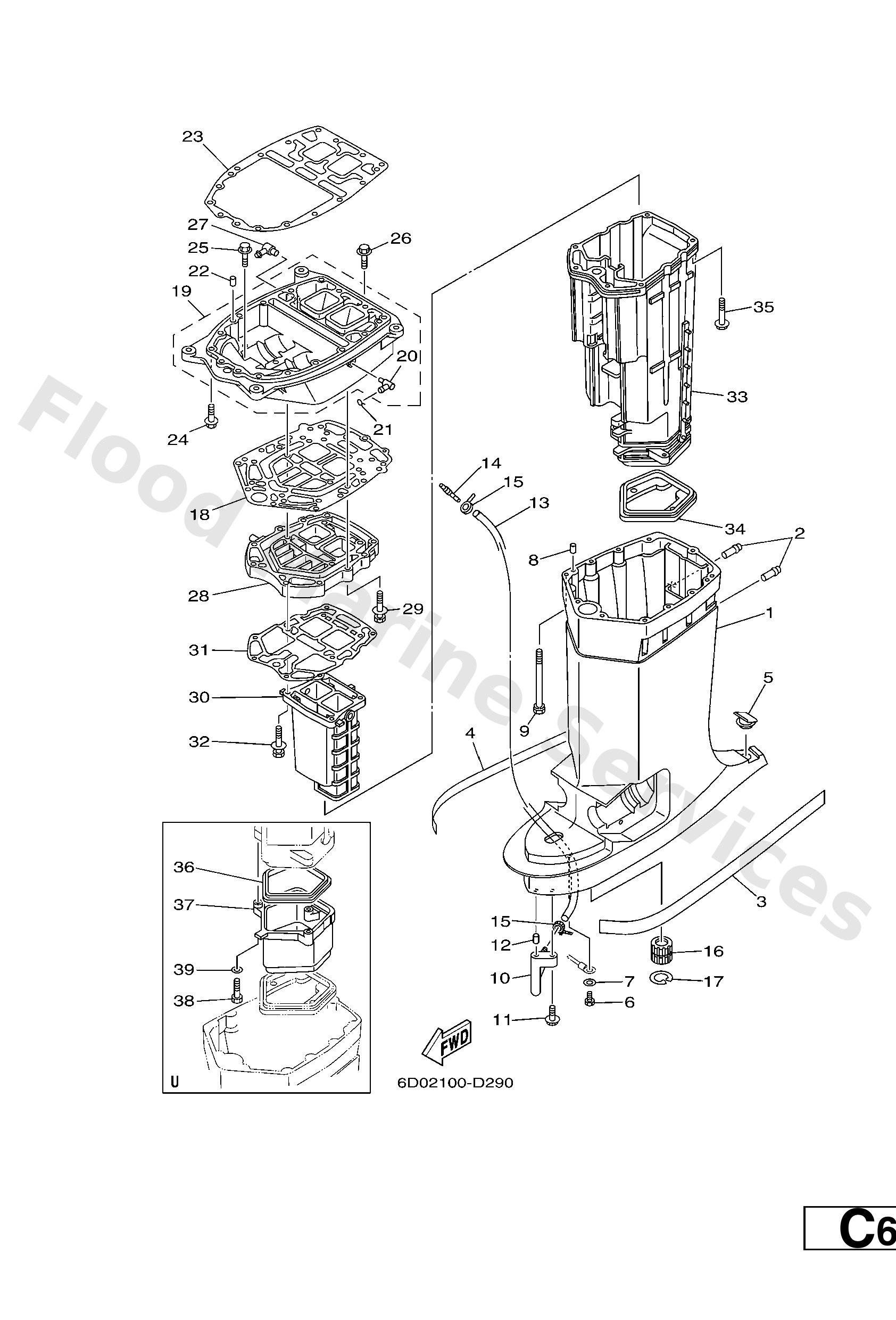

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6D045111308D
U (30.1")
Casing, Upper
Loading…
↗
1
6D045111208D
X (25.1")
Casing, Upper
Loading…
↗
2
6E52437700
Pipe, joint
Loading…
↗
3
61A42791S0
Mark 1
Loading…
↗
4
61A42792S0
Mark
Loading…
↗
5
61A4515500
Cap
Loading…
↗
6
9709506010
Bolt
Loading…
↗
39
9299506600
U (30.1")
Washer, plain (646)
Loading…
↗
8
9360812M05
Pin, dowel b (6e5)
Loading…
↗
9
9011908052
Bolt, with washer
Loading…
↗
10
61A4537800
Nipple, hose
Loading…
↗
11
9011906M17
Bolt, with washer
Loading…
↗
12
9360612019
Pin, dowel (614)
Loading…
↗
13
9044507MF0
X (25.1")
Hose (l1160)
Loading…
↗
13
9044507M21
U (30.1")
Hose (l1160)
Loading…
↗
14
6E58355800
End, nipple
Loading…
↗
15
9046511M10
Clamp
Loading…
↗
16
6E54531800
Bushing, drive shaft 3
Loading…
↗
17
9342036M01
Circlip (6a0)
Loading…
↗
18
60V4511400
Gasket, upper casing
Loading…
↗
19
6D0411370194
Guide, Exhaust
Loading…
↗
20
6761137200
Nipple, hose
Loading…
↗
21
9046708M18
Clip
Loading…
↗
23
60V4511301
Gasket, upper casing
Loading…
↗
24
9011908079
Bolt, with washer
Loading…
↗
25
9011908072
Bolt, With Washer
Loading…
↗
26
9011908060
Bolt, with washer
Loading…
↗
27
6H11137200
Nipple, hose
Loading…
↗
28
6D041131025B
Manifold, Ext. 1
Loading…
↗
29
9011908056
Bolt, With Washer
Loading…
↗
30
6D041132005B
Manifold, exhaust
Loading…
↗
31
6D04113400
Gasket, exhaust manifold
Loading…
↗
32
9011908059
Bolt, with washer
Loading…
↗
33
6D014711205B
X (25.1")
Muffler 1
Loading…
↗
33
60V14711205B
U (30.1")
Muffler 1
Loading…
↗
34
6D04512300
Gasket, muffler
Loading…
↗
36
61A4512301
U (30.1")
Gasket, muffler
Loading…
↗
37
6D014721305B
U (30.1")
Muffler 2
Loading…
↗
38
9709506035
U (30.1")
Bolt(j52)
Loading…
↗
