3AMH (2006)
UPPER CASING & BRACKET

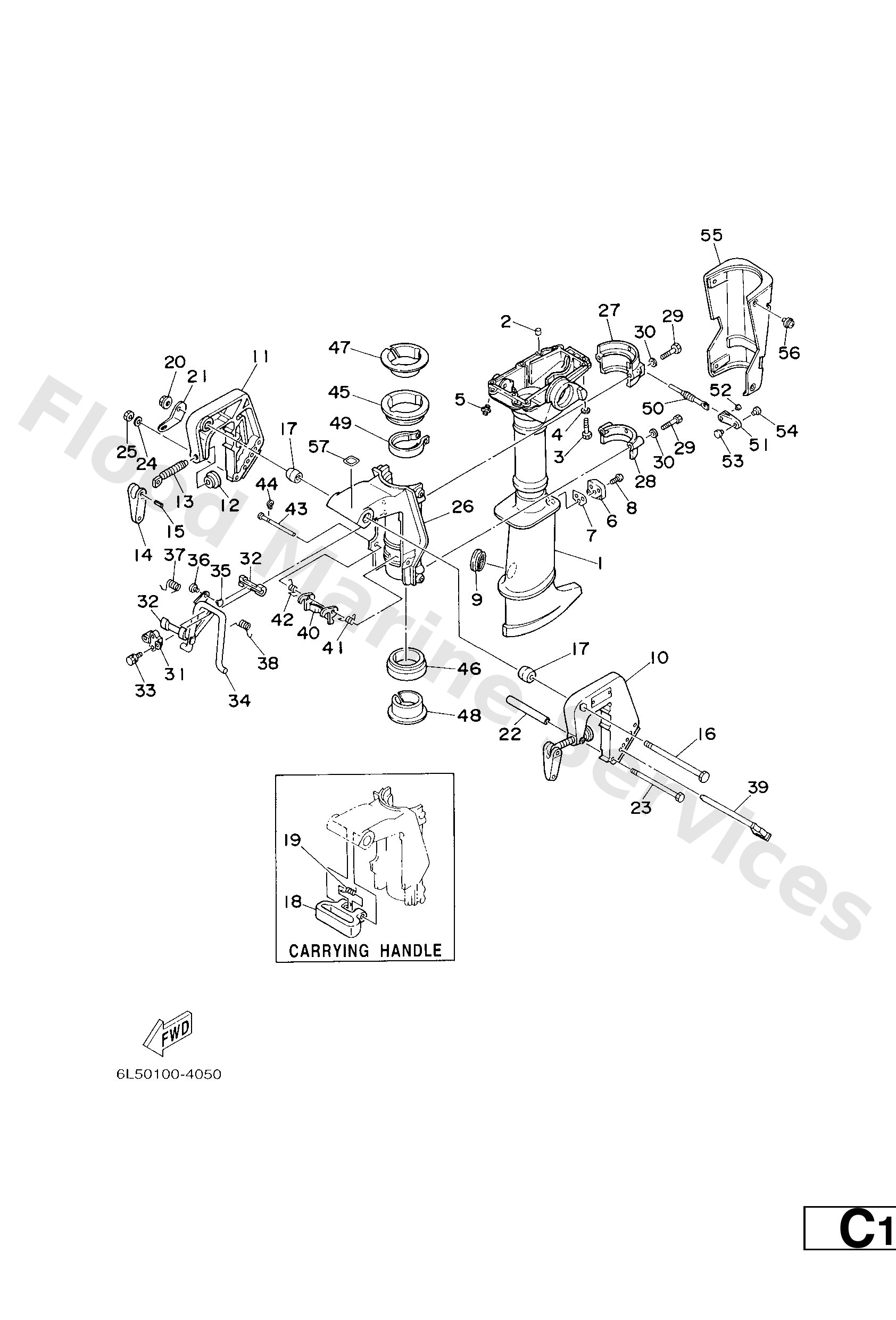

Diagram: UPPER CASING & BRACKET
Parts List
Reference
Description
Price
1
6L545111024D
Casing, upper
Loading…
↗
2
9360412M07
Pin, dowel (688)
Loading…
↗
3
9709506030
Bolt(jf7)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9370006M03
Nipple, grease(6a1)
Loading…
↗
6
6L54515200
Cover, upper casing 2
Loading…
↗
7
6L545115A0
Gasket,upper casing 3
Loading…
↗
8
9014905M08
Ybs53-525 screw,flat head
Loading…
↗
9
6474515101
Cover, upper casing
Loading…
↗
10
6L543111014D
Bracket, Clamp 1
Loading…
↗
11
6L543112004D
Bracket, Clamp 2
Loading…
↗
12
6204311400
Pad, transom clamp
Loading…
↗
13
6E04311601
Screw, transom clamp
Loading…
↗
14
6E04311801
Handle, transom clamp
Loading…
↗
15
9024304M01
Pin(6a1)
Loading…
↗
16
9010108M10
Bolt(6l5)
Loading…
↗
17
6G14313600
Piece, friction
Loading…
↗
18
6L54212100
Bracket
Loading…
↗
19
9050816M30
Spring, torsion(6l5)
Loading…
↗
20
9018508057
Nut, nylon (6j8)
Loading…
↗
21
6A14311301
Plate, clamp bracket
Loading…
↗
22
9038706M11
Collar
Loading…
↗
23
9010106335
Bolt, hexagon (624)
Loading…
↗
24
9299006600
Washer, plain (646)
Loading…
↗
25
9538006600
Nut(661)
Loading…
↗
26
6L543311014D
Bracket, swivel 1
Loading…
↗
27
6L544511004D
Cover, upper mount
Loading…
↗
28
6L544553004D
Cover, lower mount
Loading…
↗
29
9709506035
Bolt(j52)
Loading…
↗
31
6E0433130094
Bracket, swivel 3
Loading…
↗
32
6204318900
Bushing
Loading…
↗
33
9589506020
Bolt, flange(jk3)
Loading…
↗
34
6L54318100
Lever, tilt stop 1
Loading…
↗
35
6L54419600
Indicator 3
Loading…
↗
36
6L54419700
Indicator 4
Loading…
↗
37
9050816020
Spring 6474319800
Loading…
↗
38
9050816021
Spring 6474318800
Loading…
↗
39
6L54316000
Tilt rod assembly
Loading…
↗
40
6L54361400
Plate, tilt lock
Loading…
↗
41
9050808M26
Spring, torsion(6l5)
Loading…
↗
42
9050808M27
Spring, torsion(6l5)
Loading…
↗
43
6L54365900
Shaft, reverse lock
Loading…
↗
44
9908005600
Circlip(22k)
Loading…
↗
45
6L54253700
Bushing, pivot shaft
Loading…
↗
46
6L54253800
Bushing, pivot shaft
Loading…
↗
47
6L54253900
Bushing, pivot shaft
Loading…
↗
48
6L54254900
Bushing, pivot shaft
Loading…
↗
49
6E04252803
Plate, friction
Loading…
↗
50
6L54252901
Screw, friction piece
Loading…
↗
51
6L54256100
Knob, steering lock
Loading…
↗
52
9026604M05
Rivet(6l5)
Loading…
↗
55
6L54331811
Cover
Loading…
↗
56
9015906M10
Screw, with washer(6l5)
Loading…
↗
57
6A14279201
Mark (100)1)
Loading…
↗
