4CMH (2025)
UPPER CASING & BRACKET

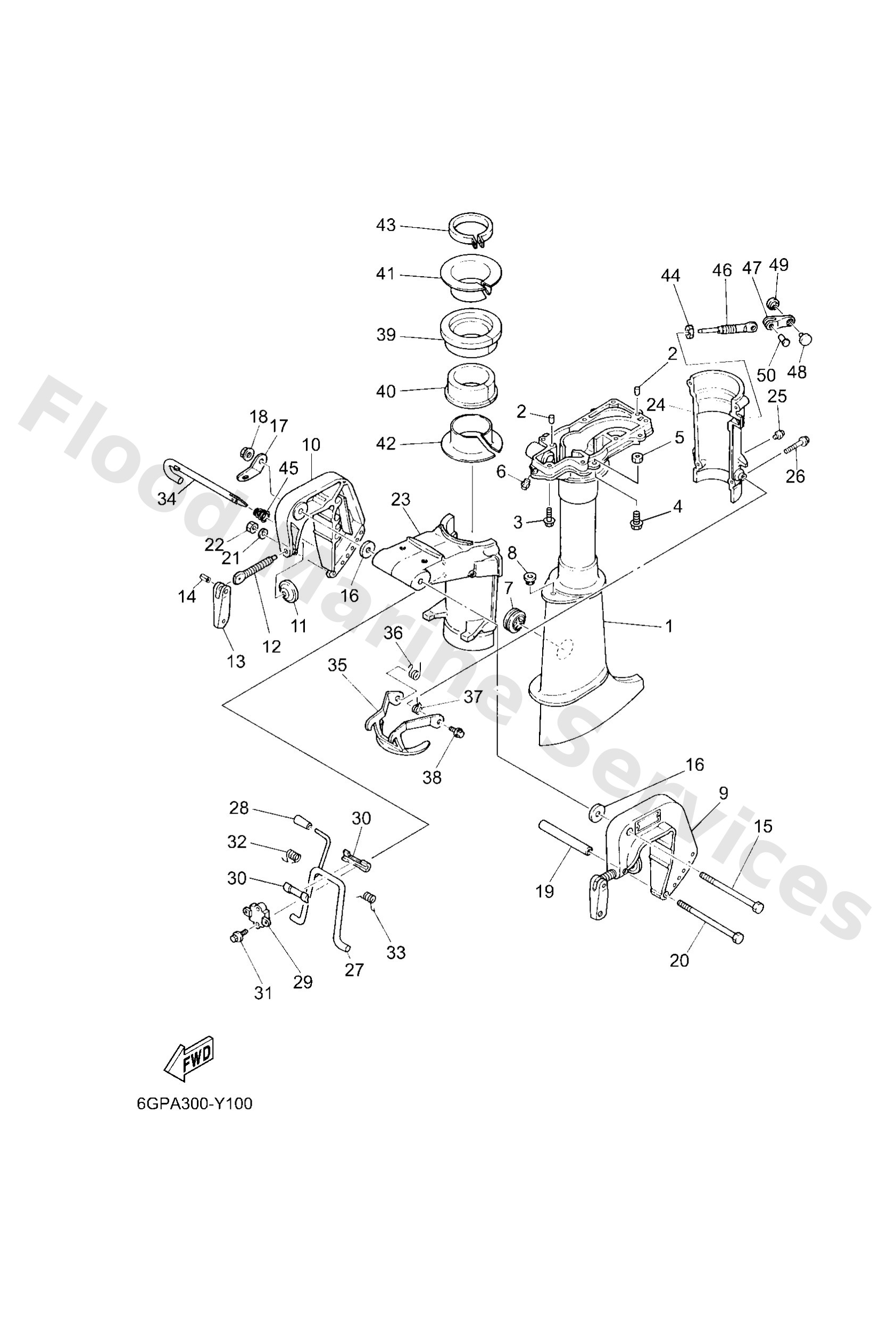

Diagram: UPPER CASING & BRACKET
Parts List
Reference
Description
Price
1
6E045111128D
L(22.5")
Casing, upper
Loading…
↗
1
6E045111028D
S(17.5")
Casing, upper
Loading…
↗
2
9360612019
Pin, dowel (614)
Loading…
↗
3
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
4
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
5
9538006700
Nut
Loading…
↗
6
9370006004
Nipple, grease(6a1)
Loading…
↗
7
6474515102
Cover, upper casing
Loading…
↗
8
9048010M13
Grommet (6e0)
Loading…
↗
9
6E043111028D
Bracket, clamp 1
Loading…
↗
10
6E043112018D
Bracket, clamp 2
Loading…
↗
11
6484311401
Pad, transom clamp
Loading…
↗
12
6E04311601
Screw, transom clamp
Loading…
↗
13
6E04311801
Handle, transom clamp
Loading…
↗
14
9024304M01
Pin(6a1)
Loading…
↗
15
9010108M07
Bolt(6e0)
Loading…
↗
16
9020108M03
Washer, plate(6e0)
Loading…
↗
17
6A14311301
Plate, clamp bracket
Loading…
↗
18
9018508057
Nut, nylon (6j8)
Loading…
↗
19
9038706371
Collar
Loading…
↗
20
9010106335
Bolt, hexagon (624)
Loading…
↗
21
9299006600
Washer, plain (646)
Loading…
↗
22
9538006600
Nut(661)
Loading…
↗
23
6E043311058D
Bracket, swivel 1
Loading…
↗
24
6E043312028D
Bracket, swivel 2
Loading…
↗
26
95D9506035
Bolt, flange deep recess
Loading…
↗
27
6E04318100
Lever, tilt stop 1
Loading…
↗
28
6E04363200
Knob, tilt
Loading…
↗
29
6E0433130094
Bracket, swivel 3
Loading…
↗
30
6204318900
Bushing
Loading…
↗
31
95D9506020
Bolt, flange deep recess
Loading…
↗
32
9050816020
Spring 6474319800
Loading…
↗
33
9050816021
Spring 6474318800
Loading…
↗
34
6E04316001
Tilt rod assembly
Loading…
↗
35
6E04361400CA
Plate, tilt lock
Loading…
↗
36
9050814M10
Spring, torsion (6e0)
Loading…
↗
37
9050814M11
Spring, torsion (6e0)
Loading…
↗
38
95D9506010
Bolt, flange deep recess
Loading…
↗
39
6E04253702
Bushing, pivot shaft
Loading…
↗
40
6E04253802
Bushing, pivot shaft
Loading…
↗
41
6E04253901
Bushing, pivot shaft
Loading…
↗
42
6E04254900
Bushing, pivot shaft
Loading…
↗
43
6E04252804
Plate, friction
Loading…
↗
44
9538008600
Nut (661)
Loading…
↗
45
9050208M05
Spring, conical(6e0)
Loading…
↗
46
6L54252901
Screw, friction piece
Loading…
↗
47
6L54256100
Knob, steering lock
Loading…
↗
48
6L54419600
Indicator 3
Loading…
↗
49
6L54419700
Indicator 4
Loading…
↗
50
9026604M05
Rivet(6l5)
Loading…
↗
