5CMH (2010)
UPPER CASING & BRACKET

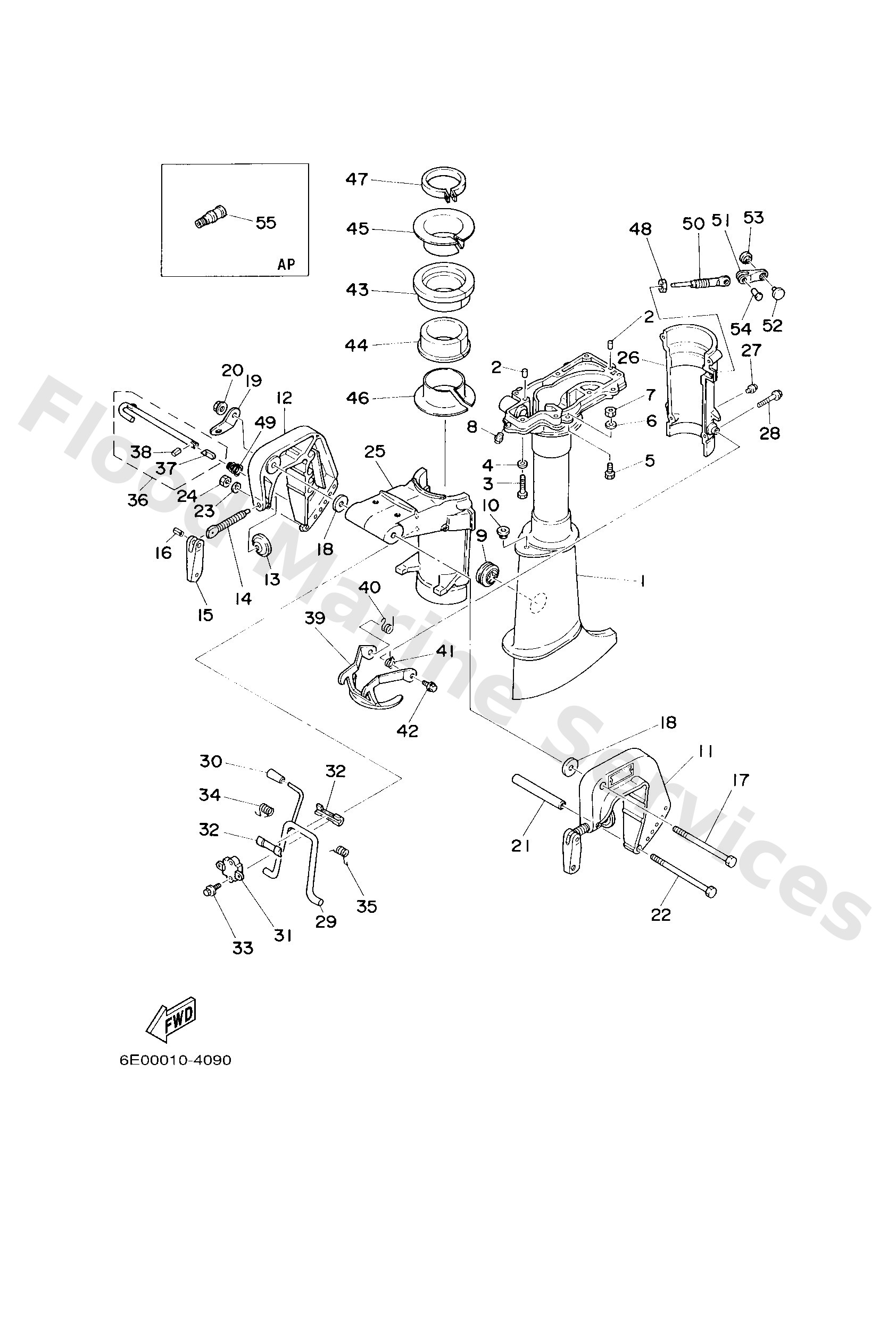

Diagram: UPPER CASING & BRACKET
Parts List
Reference
Description
Price
1
6E045111124D
L(22.5")
Casing, upper
Loading…
↗
1
6E045111024D
S(17.5")
Casing, upper
Loading…
↗
2
9360612019
Pin, dowel (614)
Loading…
↗
3
9709506030
Bolt(jf7)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9709506016
Bolt, hexagon deep recess
Loading…
↗
7
9538006700
Nut
Loading…
↗
8
9370006M03
Nipple, grease(6a1)
Loading…
↗
9
6474515101
Cover, upper casing
Loading…
↗
10
9048010M13
Grommet (6e0)
Loading…
↗
11
6E043111024D
Bracket, clamp 1
Loading…
↗
12
6E043112014D
Bracket, clamp 2
Loading…
↗
13
6204311400
Pad, transom clamp
Loading…
↗
14
6E04311601
Screw, transom clamp
Loading…
↗
15
6E04311801
Handle, transom clamp
Loading…
↗
16
9024304M01
Pin(6a1)
Loading…
↗
17
9010108M07
Bolt(6e0)
Loading…
↗
18
9020108M03
Washer, plate(6e0)
Loading…
↗
19
6A14311301
Plate, clamp bracket
Loading…
↗
20
9018508057
Nut, nylon (6j8)
Loading…
↗
21
9038706M11
Collar
Loading…
↗
22
9010106335
Bolt, hexagon (624)
Loading…
↗
23
9299006600
Washer, plain (646)
Loading…
↗
24
9538006600
Nut(661)
Loading…
↗
25
6E043311044D
Bracket, swivel 1
Loading…
↗
26
6E043312024D
Bracket, swivel 2
Loading…
↗
28
9589506035
Bolt, flange(4nx)
Loading…
↗
29
6E04318100
Lever, tilt stop 1
Loading…
↗
30
6E04363200
Knob, tilt
Loading…
↗
31
6E0433130094
Bracket, swivel 3
Loading…
↗
32
6204318900
Bushing
Loading…
↗
33
9589506020
Bolt, flange(jk3)
Loading…
↗
34
9050816020
Spring 6474319800
Loading…
↗
35
9050816021
Spring 6474318800
Loading…
↗
36
6E04316001
Tilt rod assembly
Loading…
↗
37
6894316500
Plate, tilt lock
Loading…
↗
38
9169030008
Pin. spring(656)
Loading…
↗
39
6E043614005B
Plate, tilt lock
Loading…
↗
40
9050814M10
Spring, torsion (6e0)
Loading…
↗
41
9050814M11
Spring, torsion (6e0)
Loading…
↗
42
9589506010
Bolt, flange(7ht)
Loading…
↗
43
6E04253702
Bushing, pivot shaft
Loading…
↗
44
6E04253802
Bushing, pivot shaft
Loading…
↗
45
6E04253900
Bushing, pivot shaft
Loading…
↗
46
6E04254900
Bushing, pivot shaft
Loading…
↗
47
6E04252803
Plate, friction
Loading…
↗
48
9538008600
Nut (661)
Loading…
↗
49
9050208M05
Spring, conical(6e0)
Loading…
↗
50
6L54252901
Screw, friction piece
Loading…
↗
51
6L54256100
Knob, steering lock
Loading…
↗
52
6L54419600
Indicator 3
Loading…
↗
53
6L54419700
Indicator 4
Loading…
↗
54
9026604M05
Rivet(6l5)
Loading…
↗
55
626281930194
AP D)15MM
Plug, water check
Loading…
↗
