5CMH (2003)
UPPER CASING . BRACKET

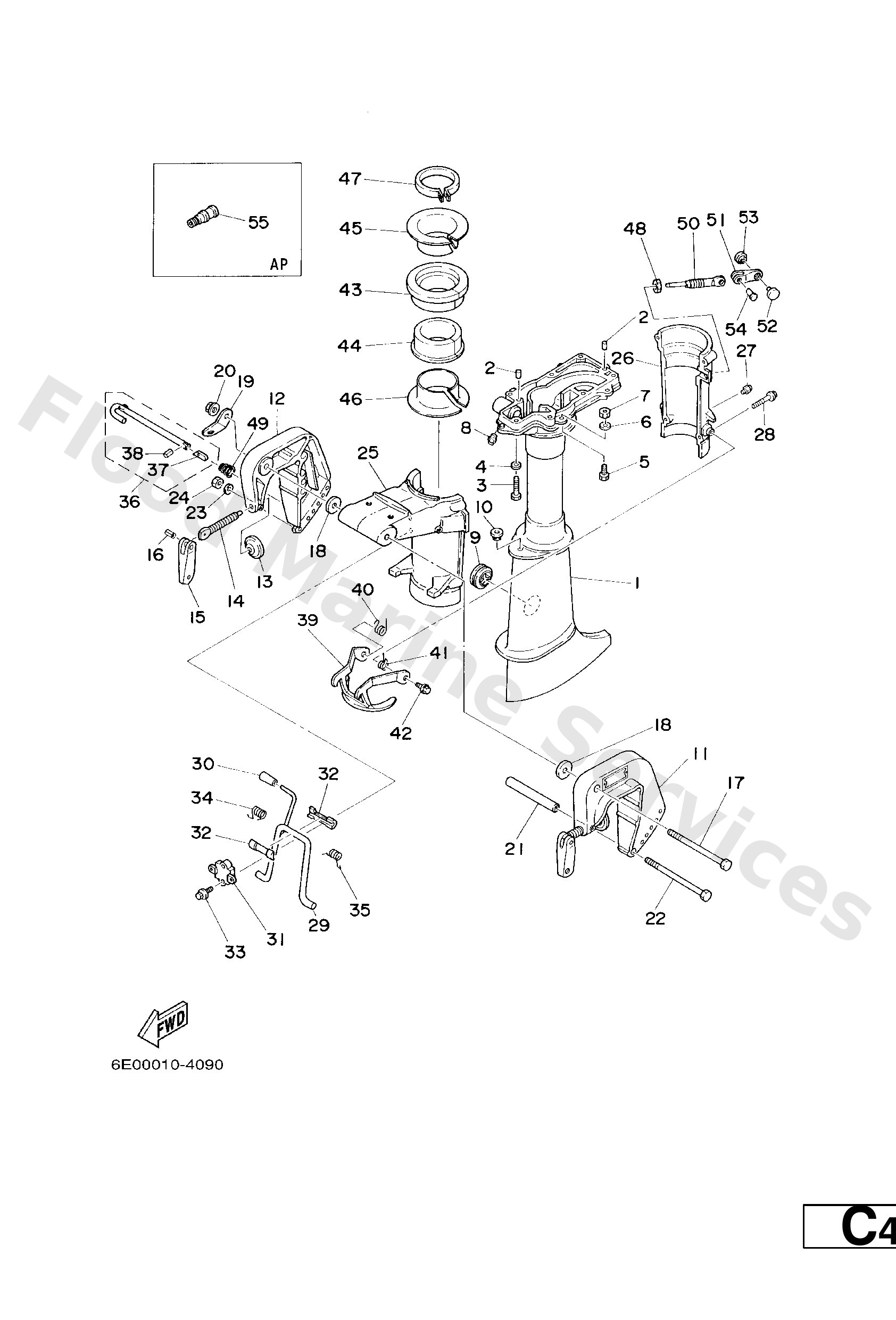

Diagram: UPPER CASING . BRACKET
Parts List
Reference
Description
Price
1
6E0−45111−12−4D
L
Casing, upper
Loading…
↗
1
6E0−45111−02−4D
S
Casing, upper
Loading…
↗
2
93606−12019
Pin, dowel (614)
Loading…
↗
3
97095−06030
Bolt(jf7)
Loading…
↗
4
92995−06600
Washer, plain (646)
Loading…
↗
5
97095−06016
Bolt, hexagon deep recess
Loading…
↗
7
95380−06700
Nut
Loading…
↗
8
93700−06M03
Nipple, grease(6a1)
Loading…
↗
9
647−45151−01
Cover, upper casing
Loading…
↗
10
90480−10M13
Grommet (6e0)
Loading…
↗
11
6E0−43111−02−4D
Bracket, clamp 1
Loading…
↗
12
6E0−43112−01−4D
Bracket, clamp 2
Loading…
↗
13
620−43114−00
Pad, transom clamp
Loading…
↗
14
6E0−43116−01
Screw, transom clamp
Loading…
↗
15
6E0−43118−01
Handle, transom clamp
Loading…
↗
16
90243−04M01
Pin(6a1)
Loading…
↗
17
90101−08M07
Bolt(6e0)
Loading…
↗
18
90201−08M03
Washer, plate(6e0)
Loading…
↗
19
6A1−43113−01
Plate, clamp bracket
Loading…
↗
20
90185−08057
Nut, nylon (6j8)
Loading…
↗
21
90387−06M11
Collar
Loading…
↗
22
90101−06335
Bolt, hexagon (624)
Loading…
↗
23
92990−06600
Washer, plain (646)
Loading…
↗
24
95380−06600
Nut(661)
Loading…
↗
25
6E0−43311−04−4D
Bracket, swivel 1
Loading…
↗
26
6E0−43312−02−4D
Bracket, swivel 2
Loading…
↗
28
95895−06035
Bolt, flange(4nx)
Loading…
↗
29
6E0−43181−00
Lever, tilt stop 1
Loading…
↗
30
6E0−43632−00
Knob, tilt
Loading…
↗
31
6E0−43313−00−94
Bracket, swivel 3
Loading…
↗
32
620−43189−00
Bushing
Loading…
↗
33
95895−06020
Bolt, flange(jk3)
Loading…
↗
34
90508−16020
Spring 6474319800
Loading…
↗
35
90508−16021
Spring 6474318800
Loading…
↗
36
6E0−43160−01
Tilt rod assembly
Loading…
↗
37
689−43165−00
Plate, tilt lock
Loading…
↗
38
91690−30008
Pin. spring(656)
Loading…
↗
39
6E0−43614−00−5B
Plate, tilt lock
Loading…
↗
40
90508−14M10
Spring, torsion (6e0)
Loading…
↗
41
90508−14M11
Spring, torsion (6e0)
Loading…
↗
42
95895−06010
Bolt, flange(7ht)
Loading…
↗
43
6E0−42537−02
Bushing, pivot shaft
Loading…
↗
44
6E0−42538−02
Bushing, pivot shaft
Loading…
↗
45
6E0−42539−00
Bushing, pivot shaft
Loading…
↗
46
6E0−42549−00
Bushing, pivot shaft
Loading…
↗
47
6E0−42528−03
Plate, friction
Loading…
↗
48
95380−08600
Nut (661)
Loading…
↗
49
90502−08M05
Spring, conical(6e0)
Loading…
↗
50
6L5−42529−01
Screw, friction piece
Loading…
↗
51
6L5−42561−00
Knob, steering lock
Loading…
↗
52
6L5−44196−00
Indicator 3
Loading…
↗
53
6L5−44197−00
Indicator 4
Loading…
↗
54
90266−04M05
Rivet(6l5)
Loading…
↗
55
626−28193−01−94
AP D)15MM
Plug, water check
Loading…
↗
