XF375NSA (2018)
UPPER CASING 1

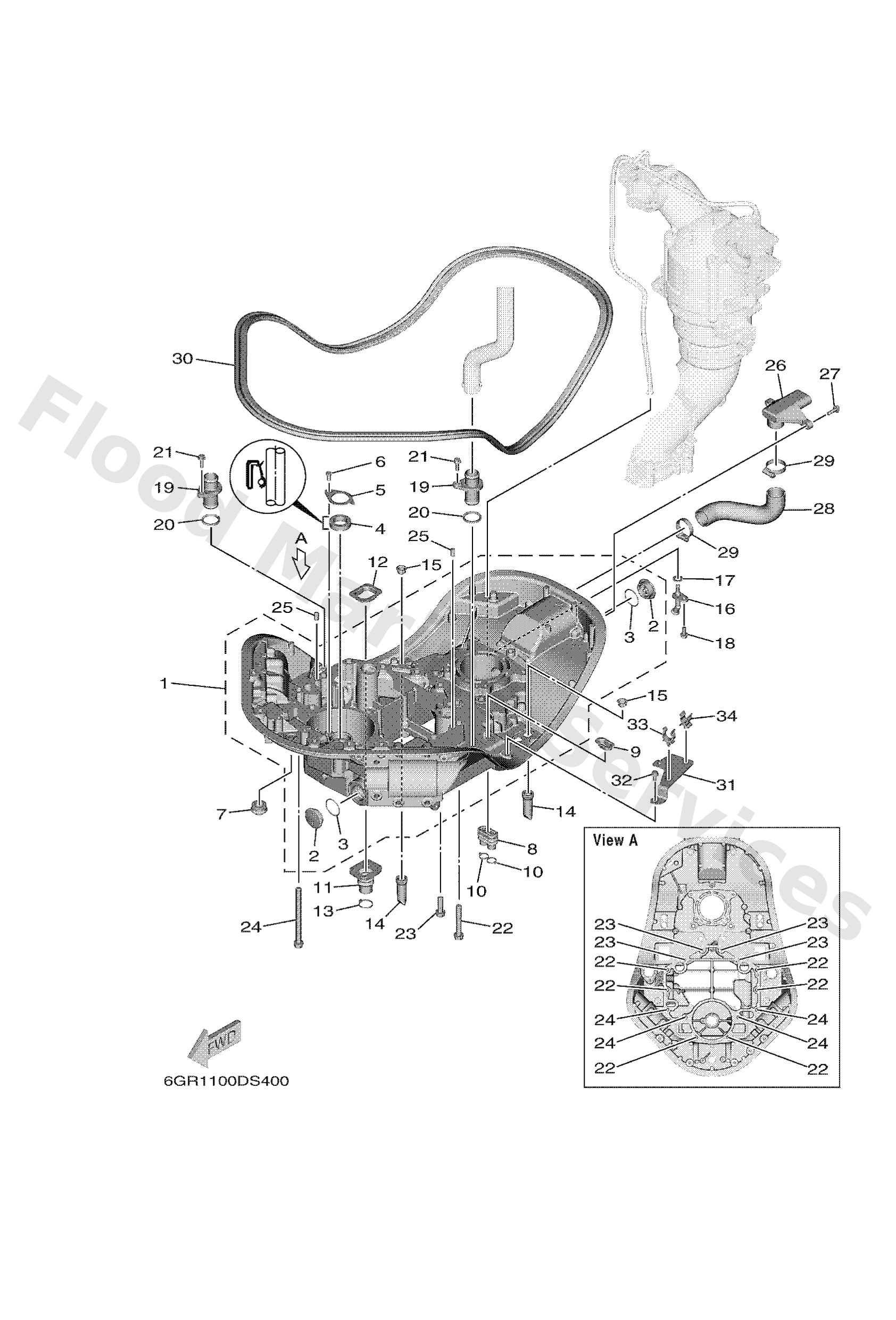

Diagram: UPPER CASING 1
Parts List
Reference
Description
Price
1
6GR4113700
Guide, exhaust
Loading…
↗
2
9034032011
Plug, straight screw
Loading…
↗
3
9321032172
O-ring (341)
Loading…
↗
4
9310226004
Oil seal
Loading…
↗
5
6GR4129700
Washer, 1
Loading…
↗
6
9709506012
Bolt(gh1)
Loading…
↗
7
6AW4272400
Grommet
Loading…
↗
8
6H14272621
Grommet
Loading…
↗
9
6BG4238400
Seal, cap
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
6GR4272400
Grommet
Loading…
↗
12
6GR4238400
Seal, cap
Loading…
↗
13
9046511M59
Clamp(63m)
Loading…
↗
14
6DA4271700
Rubber, seal 2
Loading…
↗
15
6DA4238400
Seal, cap
Loading…
↗
16
6GR4439100
Nipple, hose
Loading…
↗
17
60V4274710
Pad
Loading…
↗
18
9589506016
Bolt, flange deep recess
Loading…
↗
19
6GR1258400
Joint, hose 3
Loading…
↗
20
6GR4436600
Damper, water seal 2
Loading…
↗
21
9589506020
Bolt, flange(jk3)
Loading…
↗
22
9757510570
Bolt, hexagon w/w deep recess
Loading…
↗
23
9011910040
Bolt, with washer
Loading…
↗
24
9011910M08
Bolt, with washer
Loading…
↗
25
9360816M16
Pin, dowel(6t4)
Loading…
↗
26
6GR1475300
Silencer, exhaust
Loading…
↗
28
6GR4513500
Pipe
Loading…
↗
29
9045035003
Hose clamp assembly
Loading…
↗
30
6GR4271600
Rubber seal 1
Loading…
↗
31
6GR8239800
Plate 3
Loading…
↗
32
9589506012
Bolt, flange deep recess
Loading…
↗
33
9046419M45
Clamp(65j)
Loading…
↗
34
9046412015
Clamp
Loading…
↗
