40JMH (2003)
UPPER CASING 2

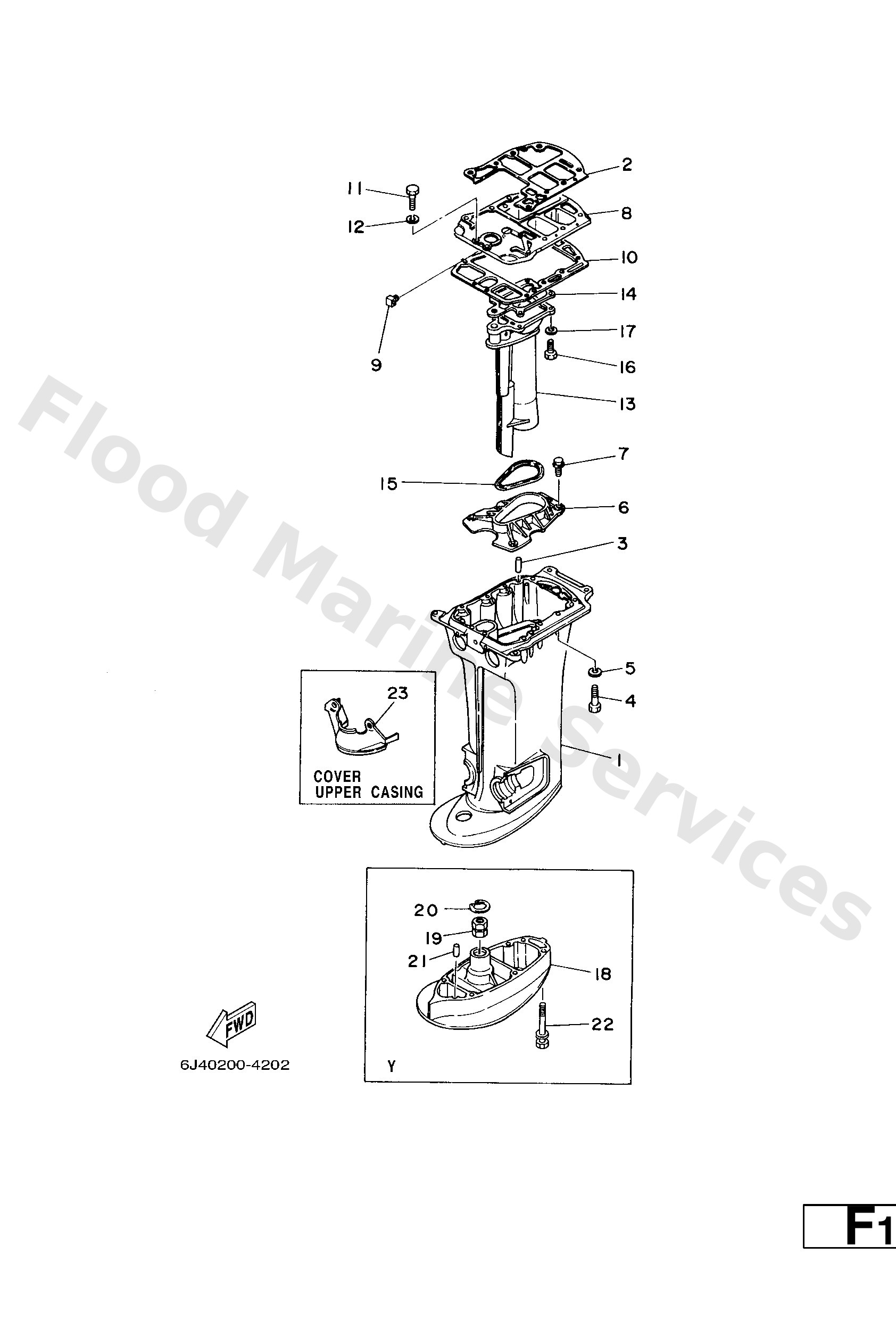

Diagram: UPPER CASING 2
Parts List
Reference
Description
Price
1
676−45111−15−4D
L/Y
Casing, Upper
Loading…
↗
1
676−45111−03−4D
S
Casing, upper
Loading…
↗
2
6F5−45113−A0
Gasket, upper casing
Loading…
↗
3
93606−25M00
Pin, dowel b (676)
Loading…
↗
4
97095−08040
Bolt, hexagon
Loading…
↗
5
92995−08100
Ybs67-8 washer, spring
Loading…
↗
6
6F5−41116−00−5B
Protector
Loading…
↗
7
90105−06M01
Bolt (6f5)
Loading…
↗
8
6F5−41137−02−94
Guide, exhaust
Loading…
↗
9
6F5−41141−00
Elbow, Water Mixing
Loading…
↗
10
676−45114−A1
Gasket, upper casing
Loading…
↗
11
97095−06025
Bolt
Loading…
↗
12
92995−06100
Washer(6a1)
Loading…
↗
13
676−41131−01−5B
Manifold, ext. 1
Loading…
↗
14
676−41133−A1
Gasket, exhaust manifold 1
Loading…
↗
15
676−45127−00
Seal 1
Loading…
↗
16
97095−06020
Bolt(7u8)
Loading…
↗
18
676−45211−20−4D
Y
Extension
Loading…
↗
19
679−45318−00
Y
Bushing, drive shaft 3
Loading…
↗
20
93420−30042
Y
Circlip (650)
Loading…
↗
21
93606−12019
Y
Pin, dowel (614)
Loading…
↗
23
676−45151−00−4D
S
Cover, upper casing
Loading…
↗
23
676−45151−10−4D
L/Y
Cover, Upper Casing
