XF425NSA2 (2019)
UPPER CASING 2

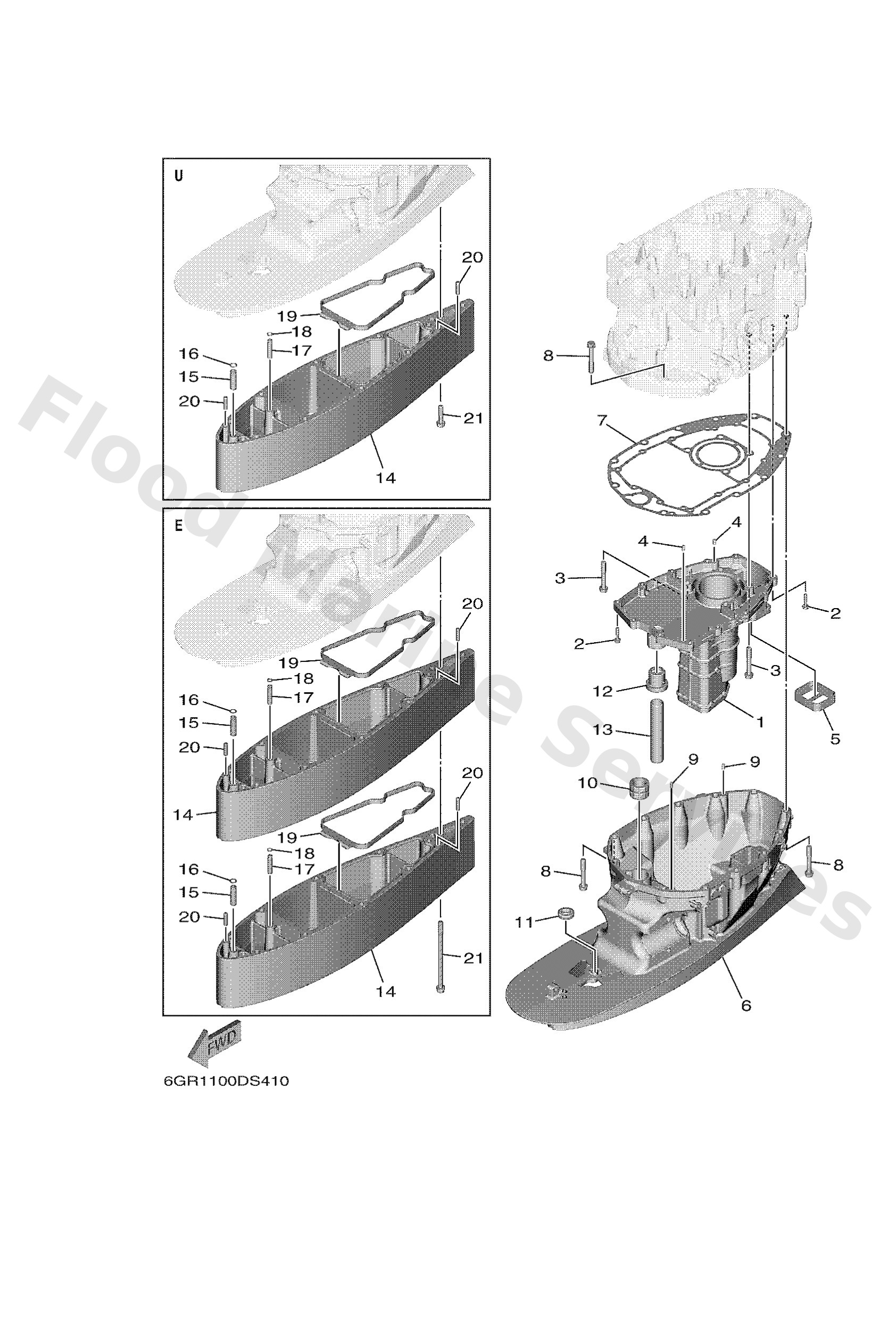

Diagram: UPPER CASING 2
Parts List
Reference
Description
Price
1
6GR1471100
Muffler 1
Loading…
↗
2
95D9506030
Bolt, flange deep recess
Loading…
↗
3
97E7510570
Bolt, hexagon w/w deep recess
Loading…
↗
4
9360612019
Pin, dowel (614)
Loading…
↗
5
6GR4512700
Seal
Loading…
↗
6
6GR4511100CE
WHITE
Casing, upper
Loading…
↗
6
6GR45111008D
GRAY
Casing, upper
Loading…
↗
7
6GR4511300
Gasket, upper casing
Loading…
↗
10
6GR4531800
Bushing, drive shaft
Loading…
↗
11
6GR4452100
Seal
Loading…
↗
12
6GR4436700
Damper, water seal 3
Loading…
↗
13
9044027003
UR E(35.2")
Pipe
Loading…
↗
13
9044027002
UR U(30.2")
Pipe
Loading…
↗
13
9044027001
UR X(25.2")
Pipe
Loading…
↗
14
6GR45211008D
UR GRAY,U(30.2")
Extension
Loading…
↗
14
6GR4521100CE
UR WHITE,U(30.2")
Extension
Loading…
↗
15
6GR4539800
UR U(30.2")
Nipple, 1
Loading…
↗
16
9321010010
UR U(30.2")
O-ring
Loading…
↗
17
6GR4539900
UR U(30.2")
Nipple, 2
Loading…
↗
18
9321007100
UR U(30.2")
O-ring (214)
Loading…
↗
19
6GR4537500
UR U(30.2")
Damper, seal
Loading…
↗
20
9948008030
UR U(30.2")
Pin
Loading…
↗
21
9011910009
UR E(35.2")
Bolt, with washer
Loading…
↗
21
9011910024
UR U(30.2")
Bolt, with washer
Loading…
↗
