150LETOL (2001)
Upper Casing

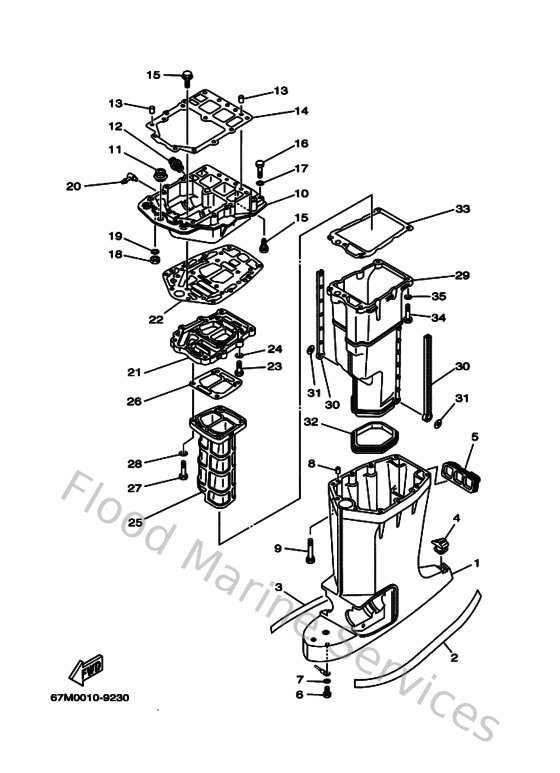

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6E545111028D
Casing, upper
Loading…
↗
2
6N9427914000
Mark 1
Loading…
↗
3
6N9427924000
Mark 2
Loading…
↗
4
6E5451550000
Cap
Loading…
↗
5
6E5427690000
Seal, rubber
Loading…
↗
6
970850601000
Bolt
Loading…
↗
7
929950660000
Washer, plain (646)
Loading…
↗
8
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
9
9011908M7800
Bolt, with washer
Loading…
↗
10
6G54113711CA
Guide, exhaust
Loading…
↗
11
6E5427240000
Grommet
Loading…
↗
12
6G5125810000
Joint, hose
Loading…
↗
14
6G545113A100
Gasket, upper casing
Loading…
↗
15
970800803000
Bolt, hexagon (fj1)
Loading…
↗
16
970950804500
Bolt, hexagon
Loading…
↗
17
929950810000
Ybs67-8 washer, spring
Loading…
↗
18
953800870000
Nut(661)
Loading…
↗
19
929900810000
Ybs67-8 washer, spring
Loading…
↗
20
6H1113720000
Nipple, hose
Loading…
↗
21
6G541131015B
Manifold, ext. 1
Loading…
↗
22
6G545114A000
Gasket, upper casing
Loading…
↗
24
929950860000
Washer, plain (663)
Loading…
↗
25
64D41132005B
Manifold, exhaust
Loading…
↗
26
6G541134A000
Gasket, exhaust manifold
Loading…
↗
27
970800804500
Bolt, hexagon
Loading…
↗
29
6E514711015B
Muffler 1
Loading…
↗
30
6E5147370000
Damper, muffler
Loading…
↗
31
9018305M0200
Nut, spring (6e5)
Loading…
↗
32
6E5451230000
Gasket, muffler
Loading…
↗
33
6E541135A000
Gasket, exhaust manifold
Loading…
↗
