20CMH (1986)
Upper Casing

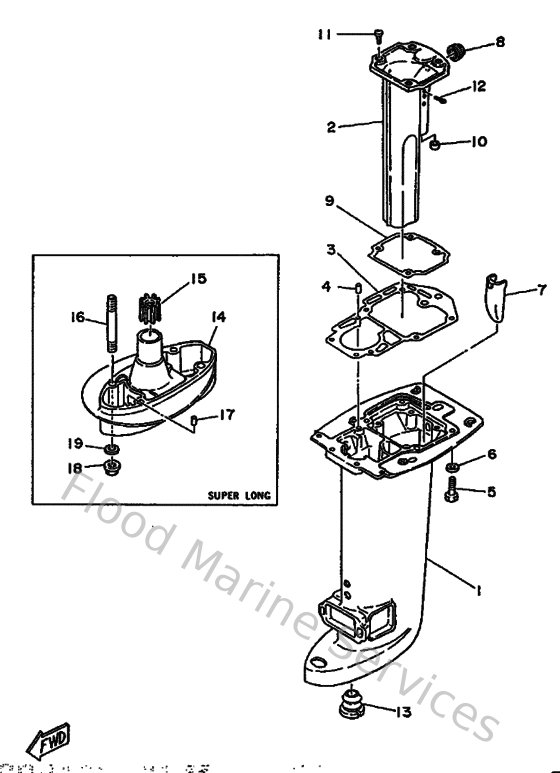

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6894511101EJ
Casing, Upper
Loading…
↗
2
664411310194
Manifold, ext. 1
Loading…
↗
3
689451130100
Gasket, upper casing
Loading…
↗
4
936061201900
Pin, dowel (614)
Loading…
↗
5
973750803000
Bolt, hexagon (fj1)
Loading…
↗
6
929000860000
Washer, plain (663)
Loading…
↗
8
664411330000
Gasket, exhaust manifold 1
Loading…
↗
9
66441134A000
Gasket, exhaust manifold
Loading…
↗
10
664411350000
Gasket, exhaust manifold
Loading…
↗
11
978900601600
Screw pan head
Loading…
↗
12
914903002500
Pin cotter
Loading…
↗
13
689451270000
Seal
Loading…
↗
15
689453180000
Bushing, drive shaft 3
Loading…
↗
16
9011610M1000
Bolt, Stud
Loading…
↗
18
9017910M0300
Nut (689)
Loading…
↗
19
929901060000
Washer, plate
Loading…
↗
