Yamaha Outboard Parts - Upper Casing - 25NEMO (1988) | Flood Marine
New Search
Parts
New Outboards
Home
25NEMO (1988)
Upper Casing

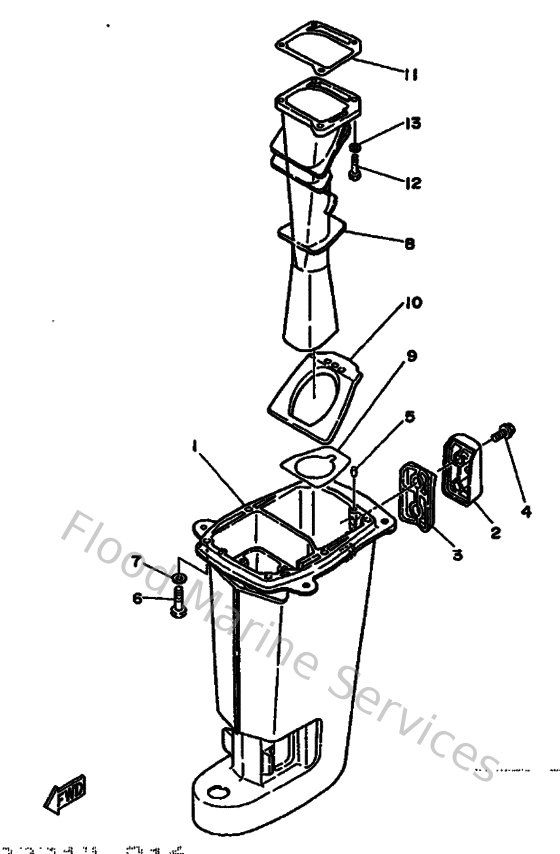

Diagram: Upper Casing
Parts List
Reference
Description
Price
3
6L2451150000
Gasket, upper casing
Loading…
↗
4
9015906M1100
Screw, with washer(6l2)
Loading…
↗
5
9360410M0300
Pin, dowel (688)
Loading…
↗
6
973950803000
Bolt, hexagon (fj1)
Loading…
↗
7
929900860000
Washer, plain (663)
Loading…
↗
8
6L34113100CA
Manifold, ext. 1
Loading…
↗
9
6L2411340000
Gasket, exhaust manifold
Loading…
↗
10
6L2451230000
Gasket, muffler
Loading…
↗
11
6L241133A000
Gasket, exhaust manifold 1
Loading…
↗
12
973950602000
Bolt(7u8)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
