25NEMO (1994)
Upper Casing

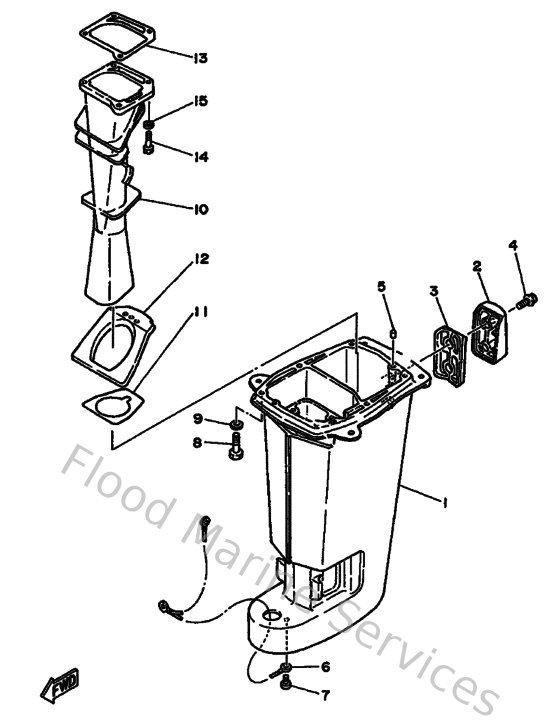

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6L245111014D
Casing, upper
Loading…
↗
2
6L245151014D
Cover, upper casing
Loading…
↗
3
6L2451150000
Gasket, upper casing
Loading…
↗
4
9015906M1100
Screw, with washer(6l2)
Loading…
↗
5
9360410M0300
Pin, dowel (688)
Loading…
↗
6
6L2821270000
Wire, lead 2
Loading…
↗
7
9015706M0600
Screw, pan head(6m7)
Loading…
↗
8
970800803000
Bolt, hexagon (fj1)
Loading…
↗
9
929900860000
Washer, plain (663)
Loading…
↗
10
6L241131005B
Manifold, ext. 1
Loading…
↗
11
6L2411340000
Gasket, exhaust manifold
Loading…
↗
12
6L2451230100
Gasket, muffler
Loading…
↗
13
6L241133A100
Gasket, exhaust manifold 1
Loading…
↗
14
970950602000
Bolt(7u8)
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
