30DMH (1987)
Upper Casing

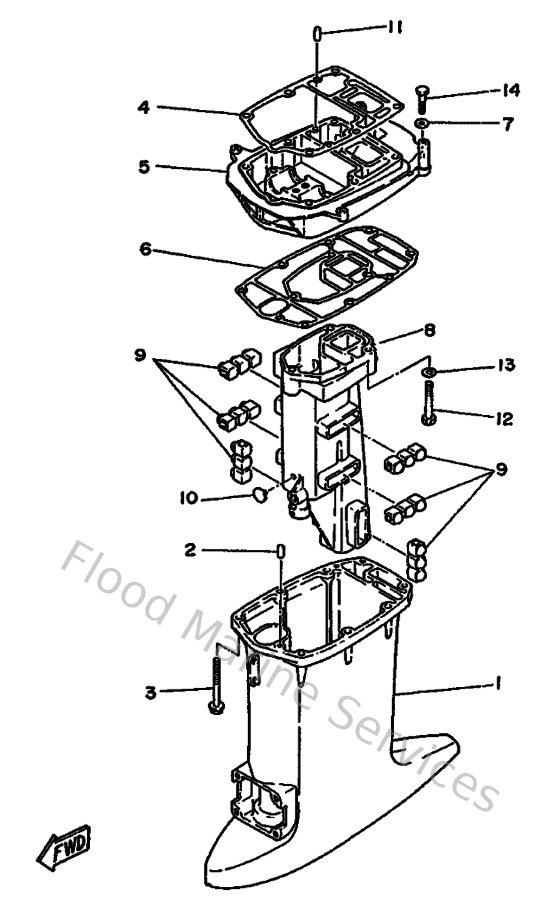

Diagram: Upper Casing
Parts List
Reference
Description
Price
2
936061201900
Pin, dowel (614)
Loading…
↗
3
9011908M3100
Bolt, with washer(6j8)
Loading…
↗
4
6J8451130000
Gasket, upper casing
Loading…
↗
5
6J84113701CA
Guide, exhaust
Loading…
↗
6
6J8451140100
Gasket, upper casing
Loading…
↗
7
929900860000
Washer, plain (663)
Loading…
↗
8
6J84113100CA
Manifold, ext. 1
Loading…
↗
9
6J8147370000
Damper, muffler
Loading…
↗
10
9033807M0000
Plug(6j8)
Loading…
↗
12
973950805000
Bolt (62k)
Loading…
↗
14
973750803000
Bolt, hexagon (fj1)
Loading…
↗
