30DMSLH (2000)
Upper Casing

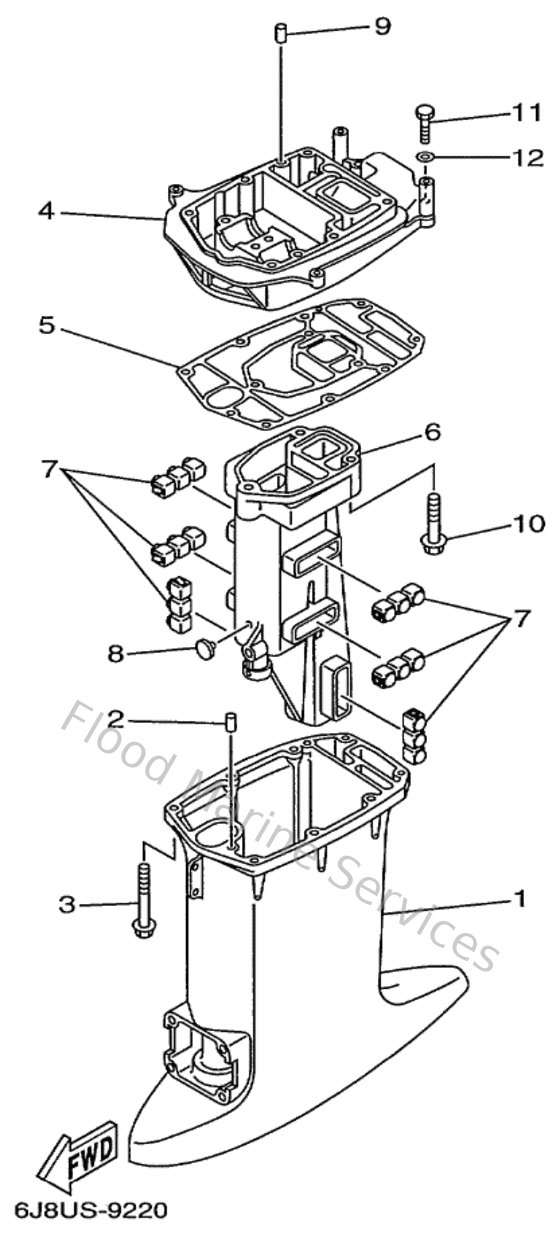

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6J845111014D
Casing, upper
Loading…
↗
2
936061201900
Pin, dowel (614)
Loading…
↗
3
9011908M3100
Bolt, with washer(6j8)
Loading…
↗
4
6J8411370194
Guide, exhaust
Loading…
↗
5
6J845114A100
Gasket, upper casing
Loading…
↗
6
6J84113100CA
Manifold, ext. 1
Loading…
↗
7
6J8147370000
Damper, muffler
Loading…
↗
8
9033807M0000
Plug(6j8)
Loading…
↗
10
975750855000
Bolt, with washer
Loading…
↗
11
970750803000
Bolt, hexagon (fj1)
Loading…
↗
12
929950860000
Washer, plain (663)
Loading…
↗
