30HMH (2001)
Upper Casing

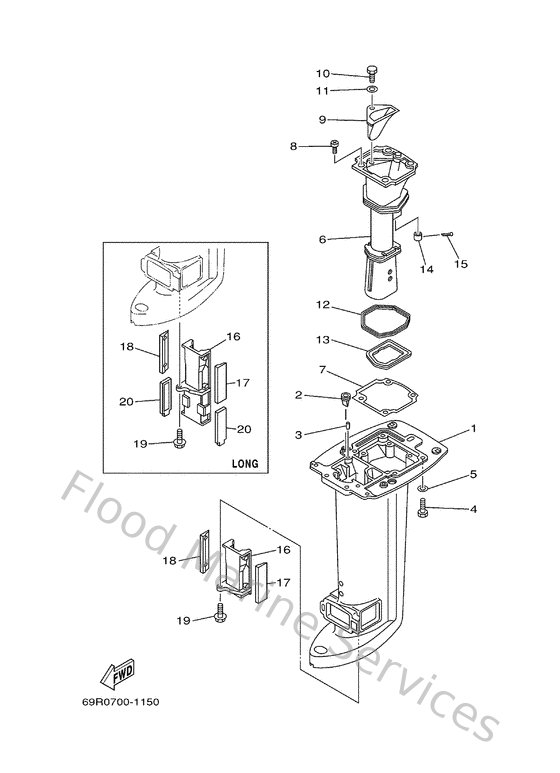

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
69P45111004D
Casing, upper
Loading…
↗
2
65W427170000
Rubber, seal 2
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
970750803000
Bolt, hexagon (fj1)
Loading…
↗
5
929900860000
Washer, plain (663)
Loading…
↗
6
69P41131005B
Manifold, Ext. 1
Loading…
↗
7
69P41134A000
Gasket, exhaust manifold
Loading…
↗
8
978800601600
Screw pan head
Loading…
↗
9
69P41137005B
Guide, exhaust
Loading…
↗
10
970950802000
Bolt, hexagon
Loading…
↗
11
929950860000
Washer, plain (663)
Loading…
↗
12
69P411380000
Seal, ext. 1
Loading…
↗
13
69P411390000
Seal, ext. 2
Loading…
↗
14
6A8411350000
Gasket, exhaust manifold 3
Loading…
↗
15
914903003000
Pin, cotter
Loading…
↗
16
69P47467005B
Plate, guide
Loading…
↗
17
69P451270000
Seal
Loading…
↗
18
69P451280000
Seal 2
Loading…
↗
19
901190602400
Bolt(7u8)
Loading…
↗
