Yamaha Outboard Parts - Upper Casing - 40QMH (1996) | Flood Marine

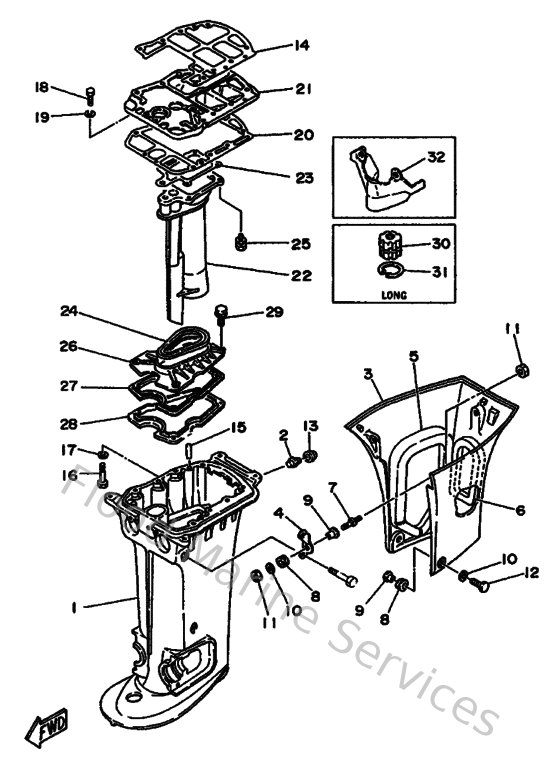

Diagram: Upper Casing

Diagram

Parts List

Reference
Description
Price


1
6A045111114D
Casing, Upper
Loading…

↗
2
6A0427610000
Stopper
Loading…

↗
4
6A0427440000
Stay
Loading…

↗
5
6A0427680000
Damper 1
Loading…

↗
6
6A0427690000
Seal, Rubber
Loading…

↗
7
6A0427420000
Bolt
Loading…

↗
8
9048012M1100
Grommet (6a0)
Loading…

↗
9
6A0427580000
Coller
Loading…

↗
11
953800660000
Nut(661)
Loading…

↗
12
973950602200
Bolt(61k)
Loading…

↗
13
663426620000
Damper
Loading…

↗
14
6F545113A000
Gasket, upper casing
Loading…

↗
15
9360625M0000
Pin, dowel b (676)
Loading…

↗
16
970950804000
Bolt, hexagon
Loading…

↗
17
929900810000
Ybs67-8 washer, spring
Loading…

↗
18
9010106M2700
Bolt
Loading…

↗
19
929950610000
Washer(6a1)
Loading…

↗
20
67645114A000
Gasket, upper casing
Loading…

↗
21
676411370394
Guide Exhaust
Loading…

↗
22
6E941131005B
Manifold, exhaust
Loading…

↗
23
67641133A000
Gasket, exhaust manifold 1
Loading…

↗
24
676451270000
Seal 1
Loading…

↗
25
975950642000
Bolt(7u8)
Loading…

↗
26
67641116005B
Protector
Loading…

↗
27
676451280000
Seal 2
Loading…

↗
29
9010506M0100
Bolt (6f5)
Loading…

↗
30
6A0453180000
Bushing drive shaft assy 3
Loading…

↗
31
9342036M0100
Circlip (6a0)
Loading…

↗
32
67645151104D
Capuchon, Fourreau
Loading…

↗
