50HM (1995)
Upper Casing

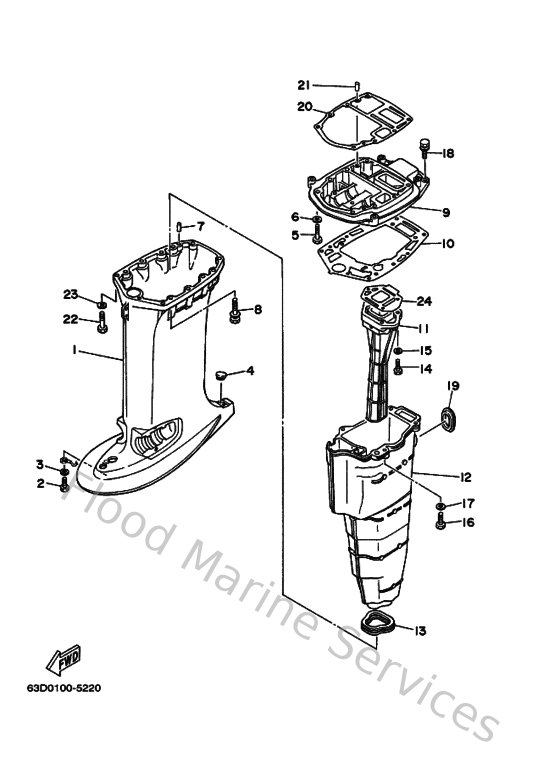

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
63D45111104D
Casing, upper
Loading…
↗
2
970950601200
Bolt(gh1)
Loading…
↗
3
929950610000
Washer(6a1)
Loading…
↗
4
63D451550000
Cap
Loading…
↗
5
973950804500
Bolt, hexagon
Loading…
↗
6
929900810000
Ybs67-8 washer, spring
Loading…
↗
7
936061201900
Pin, dowel (614)
Loading…
↗
8
9011908M8300
Bolt, with washer(697)
Loading…
↗
9
63D411370094
Guide, Exhaust
Loading…
↗
10
63D45114A000
Gasket, upper casing
Loading…
↗
11
6H441131015B
Manifold, exhaust
Loading…
↗
12
63D1471100CA
Muffler 1
Loading…
↗
13
63D451230000
Gasket, muffler
Loading…
↗
14
973950803000
Bolt, hexagon (fj1)
Loading…
↗
15
929900860000
Washer, plain (663)
Loading…
↗
17
929950860000
Washer, plain (663)
Loading…
↗
18
970800803000
Bolt, hexagon (fj1)
Loading…
↗
19
6H3451270000
Seal 1
Loading…
↗
20
6H445113A000
Gasket, upper casing
Loading…
↗
22
970950804500
Bolt, hexagon
Loading…
↗
23
929950810000
Ybs67-8 washer, spring
Loading…
↗
24
6H441134A000
Gasket, exhaust manifold
Loading…
↗
