55BM (1992)
Upper Casing

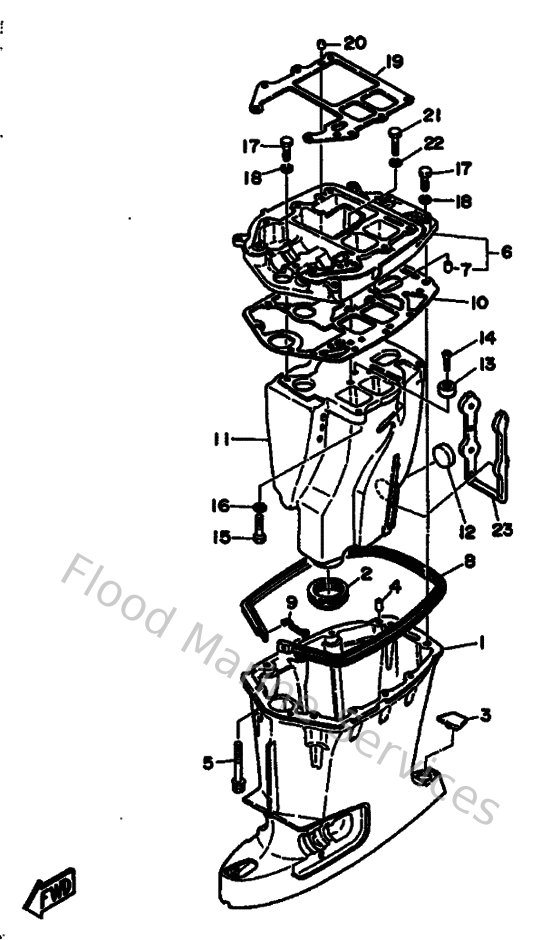

Diagram: Upper Casing
Parts List
Reference
Description
Price
2
663451230000
Gasket, muffler
Loading…
↗
3
663451551000
Cap
Loading…
↗
4
936061201900
Pin, dowel (614)
Loading…
↗
5
9011908M6200
Bolt, with washer
Loading…
↗
7
9038602M0400
Bushing (663)
Loading…
↗
8
663451270000
Seal 1
Loading…
↗
9
663451290000
Hook, damper seal
Loading…
↗
10
69745114A000
Gasket,upper casing 2
Loading…
↗
12
903343001700
Plug strait(663)
Loading…
↗
13
663452510000
Anode
Loading…
↗
14
921800602500
Screw, countersunk
Loading…
↗
15
970950803500
Bolt(70w)
Loading…
↗
16
929900810000
Ybs67-8 washer, spring
Loading…
↗
17
973950803000
Bolt, hexagon (fj1)
Loading…
↗
19
69645113A000
Gasket,upper casing
Loading…
↗
21
973950804000
Bolt, hexagon
Loading…
↗
23
663147370000
Damper, muffler
Loading…
↗
