55BM (2000)
Upper Casing

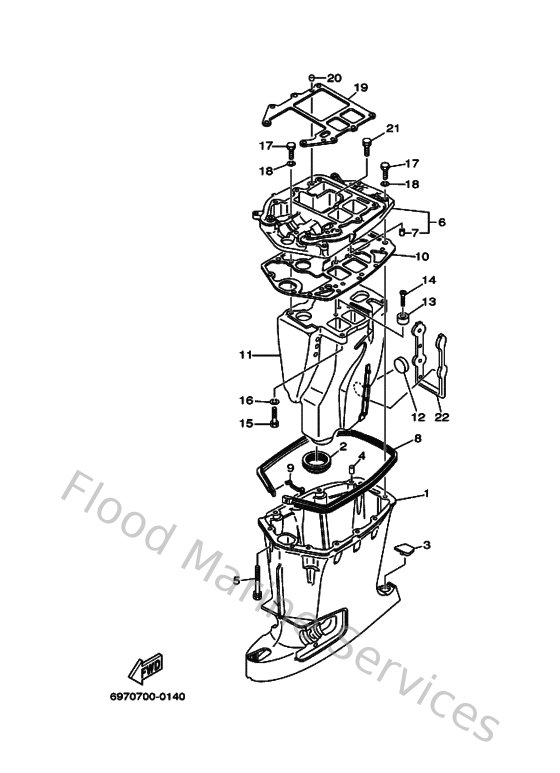

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
69145111134D
Casing, upper
Loading…
↗
2
663451230000
Gasket, muffler
Loading…
↗
3
663451551000
Cap
Loading…
↗
4
936061201900
Pin, dowel (614)
Loading…
↗
5
9011908M8200
Bolt, with washer(697)
Loading…
↗
6
663411370400
Guide, exhaust
Loading…
↗
7
9038602M0400
Bushing (663)
Loading…
↗
8
663451270000
Seal 1
Loading…
↗
9
663451290000
Hook, damper seal
Loading…
↗
10
69745114A000
Gasket,upper casing 2
Loading…
↗
11
66314711125B
Muffler
Loading…
↗
12
903343001700
Plug strait(663)
Loading…
↗
13
663452510000
Anode
Loading…
↗
14
9015206M0100
Screw, countersunk
Loading…
↗
15
970750803500
Bolt(70w)
Loading…
↗
16
929950810000
Ybs67-8 washer, spring
Loading…
↗
17
970800803000
Bolt, hexagon (fj1)
Loading…
↗
19
69645113A000
Gasket,upper casing
Loading…
↗
21
975750844000
Bolt, with washer
Loading…
↗
22
663147371000
Damper, muffler
Loading…
↗
