75AE (1990)
Upper Casing

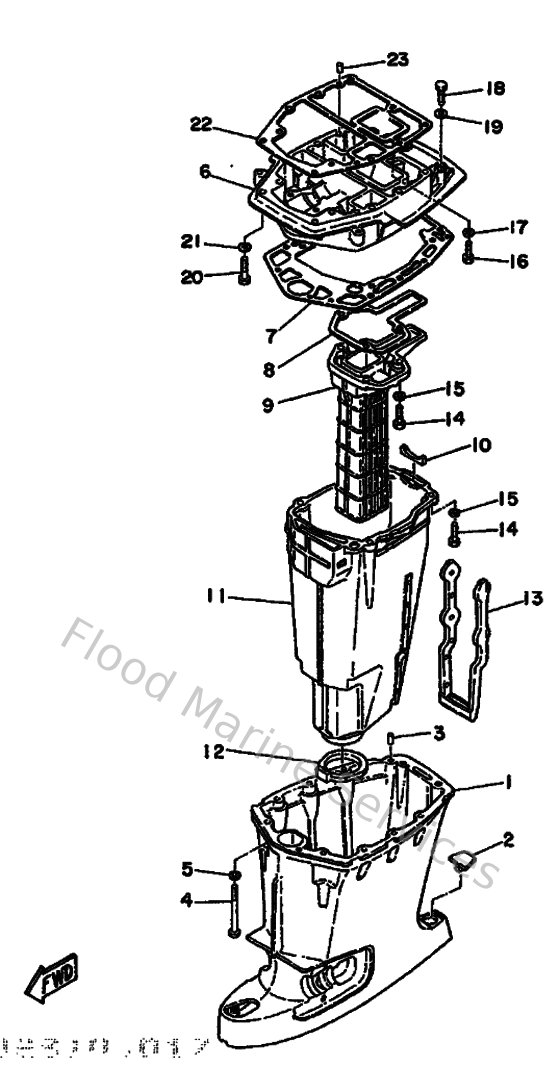

Diagram: Upper Casing
Parts List
Reference
Description
Price
2
663451551000
Cap
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
9010108M5000
Bolt, with washer(688)
Loading…
↗
5
929900810000
Ybs67-8 washer, spring
Loading…
↗
6
688411370294
Guide, exhaust
Loading…
↗
7
68845114A100
Gasket, upper casing
Loading…
↗
8
688411340000
Gasket, exhaust manifold
Loading…
↗
9
68841131005B
Manifold, ext. 1
Loading…
↗
10
688411330000
Gasket, exhaust manifold 1
Loading…
↗
11
6881471101CA
Muffler 1
Loading…
↗
12
688451230000
Gasket, muffler
Loading…
↗
14
973950803000
Bolt, hexagon (fj1)
Loading…
↗
16
973950802500
Bolt (62g)
Loading…
↗
20
970900803500
Bolt(70w)
Loading…
↗
22
688451130000
Gasket, upper casing
Loading…
↗
