8CEM (1989)
Upper Casing

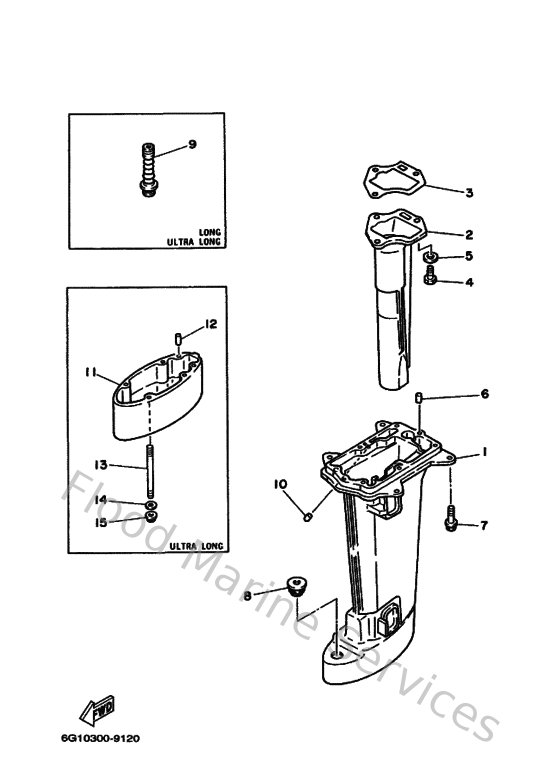

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6N0G5111004D
Casing, upper
Loading…
↗
2
6G141131009M
Manifold, ext. 1
Loading…
↗
3
6G1411330000
Gasket, exhaust manifold 1
Loading…
↗
4
973950602000
Bolt(7u8)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
936040806200
Pin,dowel (626)
Loading…
↗
7
958950603000
Bolt, flange deep recess
Loading…
↗
8
9048020M2900
Grommet (6g1)
Loading…
↗
9
6G1441470000
Boot, shift rod
Loading…
↗
10
6G1451350000
Pipe 1
Loading…
↗
13
9011606M1800
Bolt Stud (6G1)
Loading…
↗
15
957800630000
Nut, nylon (6g1)
Loading…
↗
