8CEM (1994)
Upper Casing

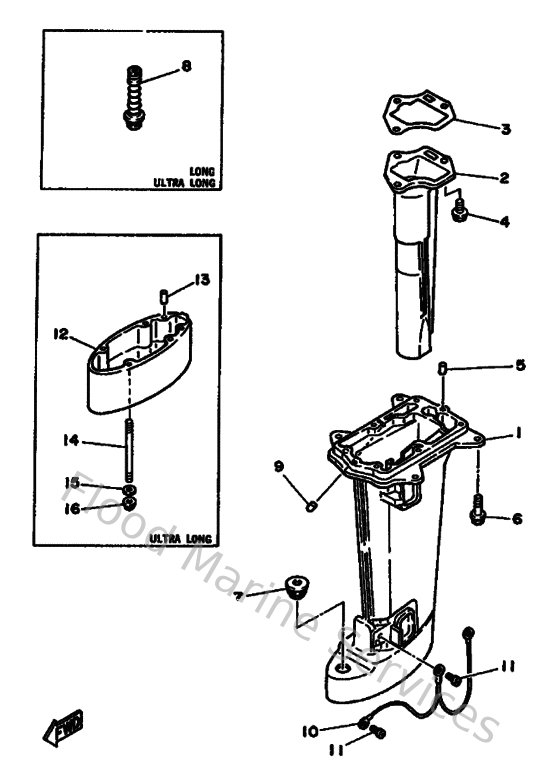

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6G145111014D
Casing, upper
Loading…
↗
2
6GH4113100CA
Manifold, ext. 1
Loading…
↗
3
6G141133A000
Gasket, exhaust manifold 1
Loading…
↗
4
975950652000
Bolt(7u8)
Loading…
↗
5
936040806200
Pin,dowel (626)
Loading…
↗
6
958950603000
Bolt, flange deep recess
Loading…
↗
7
9048020M2900
Grommet (6g1)
Loading…
↗
8
6G1441470000
Boot, shift rod
Loading…
↗
9
6G1451350000
Pipe 1
Loading…
↗
10
6G1821490000
Wire, lead 3
Loading…
↗
11
985800600800
Screw, pan head(6a3)
Loading…
↗
12
6G145211204D
Extension
Loading…
↗
14
9011606M1800
Bolt Stud (6G1)
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
957800630000
Nut, nylon (6g1)
Loading…
↗
