9.9DMH (1987)
Upper Casing

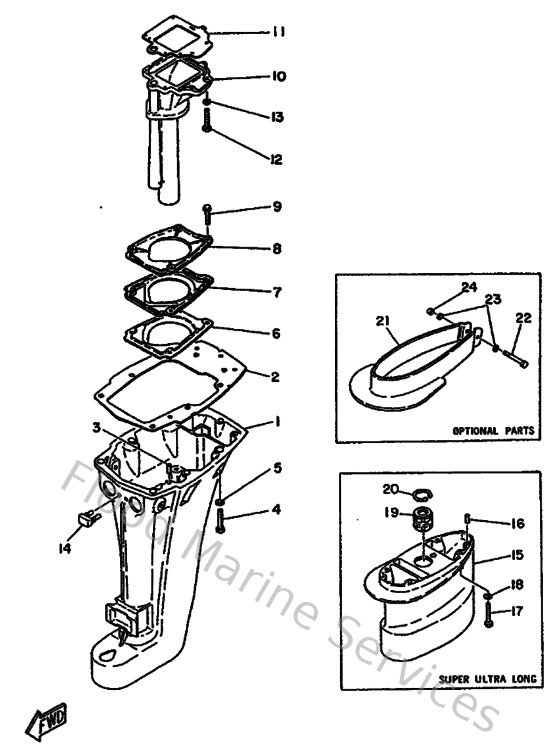

Diagram: Upper Casing
Parts List
Reference
Description
Price
2
682451130200
Gasket, upper casing
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
973950804000
Bolt, hexagon
Loading…
↗
5
929900860000
Washer, plain (663)
Loading…
↗
6
68245126009M
Plate, Seal Damper
Loading…
↗
7
682451270000
Seal
Loading…
↗
8
68241116009M
Protector
Loading…
↗
9
9010506M0100
Bolt (6f5)
Loading…
↗
10
68241131019M
Manifold, exhaust
Loading…
↗
11
682411330000
Gasket,exhaust manifold 1
Loading…
↗
12
970800602000
Bolt(7u8)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
682445320000
Stopper, upper mount
Loading…
↗
17
973750803500
Bolt(70w)
Loading…
↗
19
682453180000
Bushing, drive shaft
Loading…
↗
20
934203004200
Circlip (650)
Loading…
↗
22
973950604000
Bolt (682)
Loading…
↗
24
953800670000
Nut
Loading…
↗
