Yamaha Outboard Parts - Upper Casing - 90AETOL (1985) | Flood Marine
New Search
Parts
New Outboards
Home
90AETOL (1985)
Upper Casing

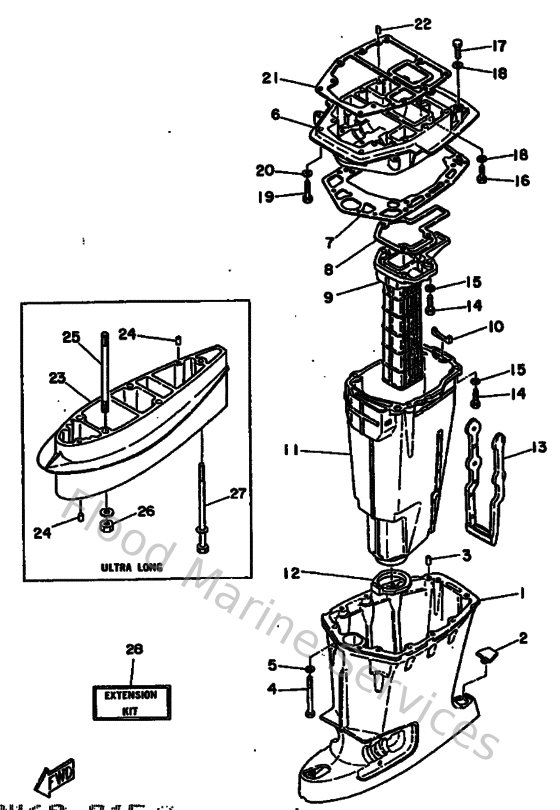

Diagram: Upper Casing
Parts List
Reference
Description
Price
2
663451551000
Cap
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
9010108M5000
Bolt, with washer(688)
Loading…
↗
5
929900810000
Ybs67-8 washer, spring
Loading…
↗
6
6884113709CA
Guide, exhaust
Loading…
↗
7
688451140100
Gasket, upper casing
Loading…
↗
8
68841134A000
Gasket, exhaust manifold
Loading…
↗
9
68841131009M
Manifold, ext. 1
Loading…
↗
10
688411330000
Gasket, exhaust manifold 1
Loading…
↗
11
68814711019M
Muffler 1
Loading…
↗
12
688451230000
Gasket, muffler
Loading…
↗
13
663147371000
Damper, muffler
Loading…
↗
14
973750803000
Bolt, hexagon (fj1)
Loading…
↗
16
970950802500
Bolt (62g)
Loading…
↗
19
973750803500
Bolt(70w)
Loading…
↗
21
688451130000
Gasket, upper casing
Loading…
↗
23
6884521100EJ
Extension
Loading…
↗
25
9011610M0500
Bolt, stud (688)
Loading…
↗
26
953801060000
Nut(624)
Loading…
↗
27
973750819000
Bolt, with washer(62x)
Loading…
↗
