90AETOL (1995)
Upper Casing

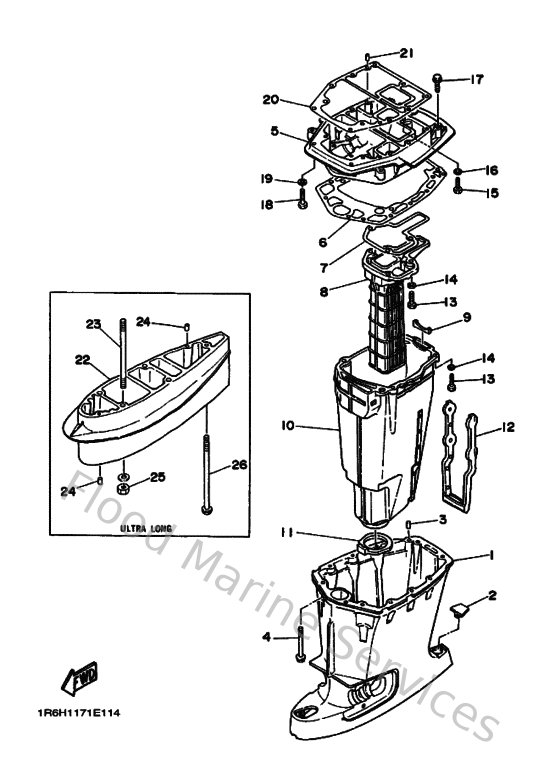

Diagram: Upper Casing
Parts List
Reference
Description
Price
2
663451551000
Cap
Loading…
↗
3
936061201900
Pin, dowel (614)
Loading…
↗
4
9011908M8000
Bolt, with washer(688)
Loading…
↗
5
688411370294
Guide, exhaust
Loading…
↗
6
68845114A100
Gasket, upper casing
Loading…
↗
7
68841134A000
Gasket, exhaust manifold
Loading…
↗
8
6884113100CA
Manifold, ext. 1
Loading…
↗
9
688411330000
Gasket, exhaust manifold 1
Loading…
↗
10
68814711015B
Muffler 1
Loading…
↗
11
688451230000
Gasket, muffler
Loading…
↗
12
663147371000
Damper, muffler
Loading…
↗
13
973950803000
Bolt, hexagon (fj1)
Loading…
↗
14
929900810000
Ybs67-8 washer, spring
Loading…
↗
15
973950802500
Bolt (62g)
Loading…
↗
17
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
18
970950803500
Bolt(70w)
Loading…
↗
20
68845113A000
Gasket, upper casing
Loading…
↗
23
9011610M0500
Bolt, stud (688)
Loading…
↗
25
953801060000
Nut(624)
Loading…
↗
26
9011908M8600
Bolt, with washer(62x)
Loading…
↗
