F30AMS (2001)
Upper Casing

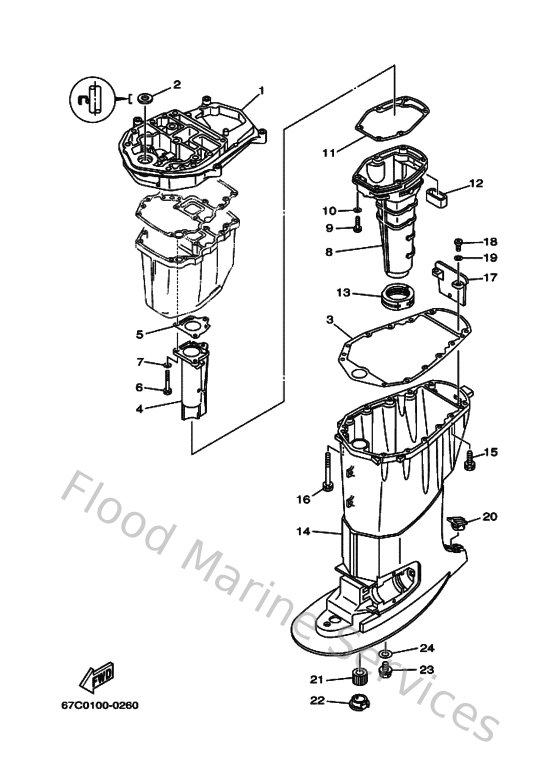

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
67C411370094
Guide, exhaust
Loading…
↗
2
9310416M0100
Oil seal(6a8)
Loading…
↗
3
67C451130000
Gasket, upper casing
Loading…
↗
4
67C4113100CA
Manifold, ext. 1
Loading…
↗
5
67C411330000
Gasket, exhaust manifold 1
Loading…
↗
6
970750605000
Bolt(jf7)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
67C1471112CA
Muffler 1
Loading…
↗
9
970750602500
Bolt
Loading…
↗
10
929950660000
Washer, plain (646)
Loading…
↗
11
6BG411340000
Gasket, exhaust manifold
Loading…
↗
12
62Y451270000
Seal
Loading…
↗
13
67C451230000
Gasket, muffler
Loading…
↗
14
999990344000
Casing, Upper
Loading…
↗
15
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
16
9011908M8200
Bolt, with washer(697)
Loading…
↗
17
67C451510000
Cover, upper casing
Loading…
↗
18
978850501600
Screw, pan head(6b0)
Loading…
↗
19
929900560000
Washer, plain (646)
Loading…
↗
20
63D451550000
Cap
Loading…
↗
21
679453180000
Bushing, drive shaft 3
Loading…
↗
22
9038626MA600
Bush
Loading…
↗
23
9034014M0600
Plug, straight screw(62y)
Loading…
↗
24
9043014M0900
Gasket
