F4AMH (2001)
Upper Casing

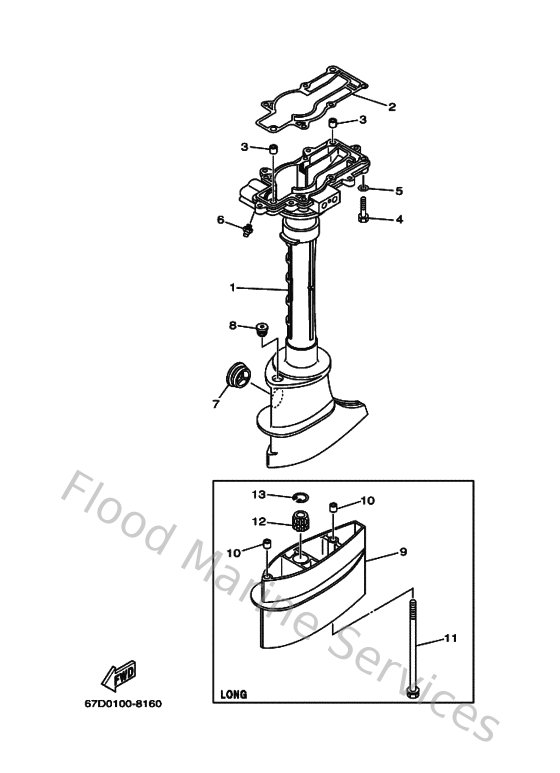

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
68DG5111004D
Casing, Upper
Loading…
↗
2
67D45113A000
Gasket, upper casing
Loading…
↗
3
903870680600
Collar(6e0)
Loading…
↗
4
970950603500
Bolt(j52)
Loading…
↗
5
929950660000
Washer, plain (646)
Loading…
↗
6
9370006M0300
Nipple, grease(6a1)
Loading…
↗
7
647451510100
Cover, upper casing
Loading…
↗
8
9048010M1300
Grommet (6e0)
Loading…
↗
9
68DG5211004D
Extension
Loading…
↗
11
9011906M7700
Bolt, with washer
Loading…
↗
12
6E0453180100
Bushing, drive shaft 3
Loading…
↗
13
9342022M0300
Cir clip (6e0)
Loading…
↗
