F50AE (2001)
Upper Casing

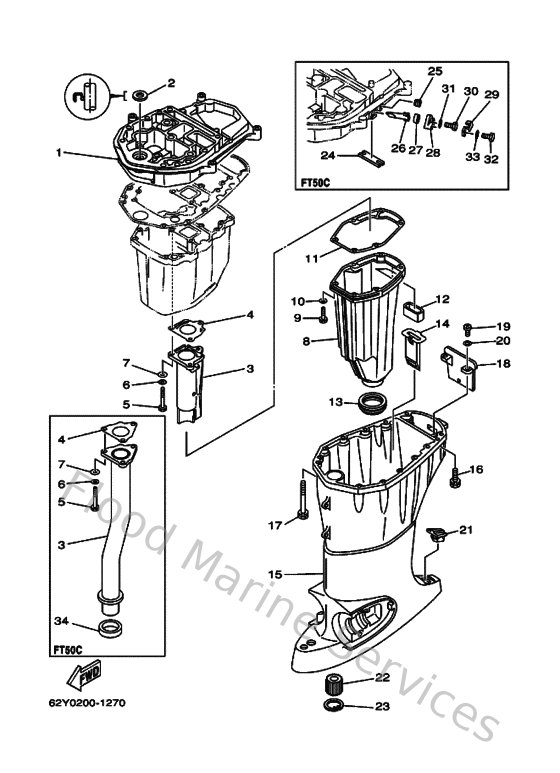

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
62Y411371094
Guide, Exhaust
Loading…
↗
2
931031801100
Oil seal
Loading…
↗
3
67C41131005B
Manifold, ext. 1
Loading…
↗
4
67C411330000
Gasket, exhaust manifold 1
Loading…
↗
5
970750605000
Bolt(jf7)
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
902010601500
Washer, plate
Loading…
↗
8
62Y14711005B
Muffler 1
Loading…
↗
9
970750602500
Bolt
Loading…
↗
10
929950660000
Washer, plain (646)
Loading…
↗
11
6BG411340000
Gasket, exhaust manifold
Loading…
↗
12
62Y451270000
Seal
Loading…
↗
13
663451230000
Gasket, muffler
Loading…
↗
15
62Y45111214D
Casing, upper
Loading…
↗
16
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
17
9011908M8200
Bolt, with washer(697)
Loading…
↗
18
62Y451510000
Cover, upper casing
Loading…
↗
19
978800501600
Screw, pan head(6b0)
Loading…
↗
20
929900560000
Washer, plain (646)
Loading…
↗
21
6H3451550000
Cap
Loading…
↗
22
62Y453180000
Bushing Drive Shaft
Loading…
↗
23
9342036M0100
Circlip (6a0)
Loading…
↗
