F80AET (2001)
Upper Casing

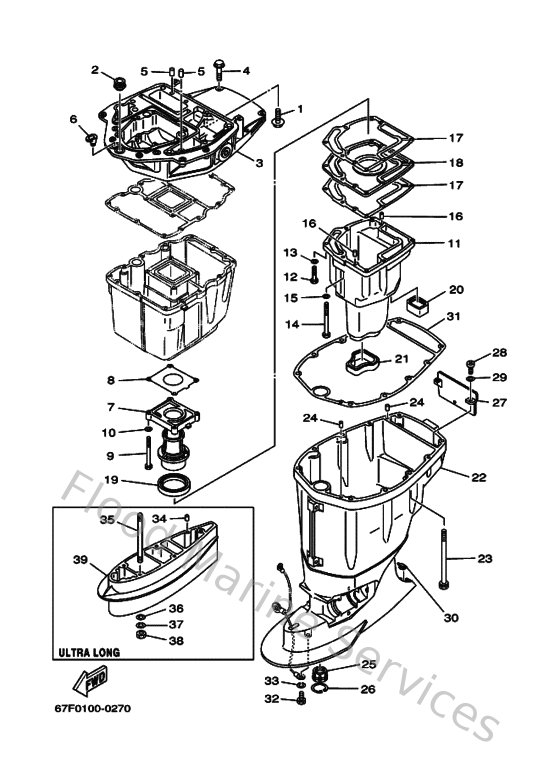

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
9011908M5800
Bolt, with washer
Loading…
↗
2
67F427240000
Grommet
Loading…
↗
3
67F411370194
Guide, exhaust
Loading…
↗
4
975750854000
Bolt, hexagon w/w deep recess
Loading…
↗
5
9360816M1600
Pin, dowel(6t4)
Loading…
↗
6
6G1427270000
Grommet
Loading…
↗
7
67F4113101CA
Manifold, ext. 1
Loading…
↗
8
67F41133A000
Gasket, exhaust manifold 1
Loading…
↗
9
970750607000
Bolt(4kg)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
67F14711005B
Muffler 1
Loading…
↗
12
970750603000
Bolt(jf7)
Loading…
↗
13
929950660000
Washer, plain (646)
Loading…
↗
14
970800605000
Bolt(jf7)
Loading…
↗
16
9360619M2300
Pin, dowel
Loading…
↗
17
67F41134A000
Gasket, exhaust manifold
Loading…
↗
18
67F4518100CA
Plate
Loading…
↗
19
67F411380000
Seal, ext. 1
Loading…
↗
20
67F451270000
Seal
Loading…
↗
21
67F451230000
Gasket, muffler
Loading…
↗
22
67F45111104D
Casing, upper
Loading…
↗
23
9011910M0800
Bolt, with washer
Loading…
↗
25
67F453180000
Bushing, drive shaft
Loading…
↗
26
9342036M0100
Circlip (6a0)
Loading…
↗
27
67F451510000
Cover, upper casing
Loading…
↗
28
978800601600
Screw pan head
Loading…
↗
30
67F451550000
Cap
Loading…
↗
31
67F451130000
Gasket, upper casing
Loading…
↗
32
970950801600
Bolt, hexagon deep recess
Loading…
↗
33
929950810000
Ybs67-8 washer, spring
Loading…
↗
34
936061201900
Pin, dowel (614)
Loading…
↗
35
9011610M0500
Bolt, stud (688)
Loading…
↗
36
929901060000
Washer, plate
Loading…
↗
37
929901010000
Ybs67-10 washer, spring
Loading…
↗
38
953801060000
Nut(624)
Loading…
↗
39
68845211014D
Extension
