F8BMH (1997)
Upper Casing

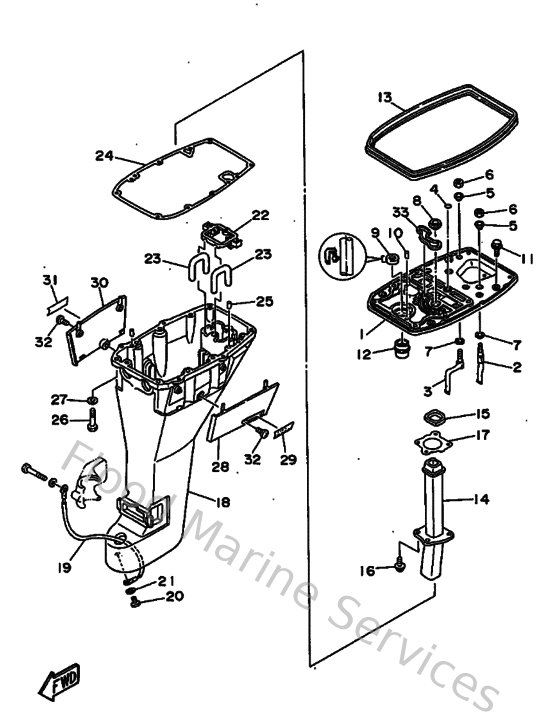

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6G8411370494
Guide, exhaust
Loading…
↗
2
6G8124830000
Pipe 3
Loading…
↗
3
6G8124840000
Pipe 4
Loading…
↗
4
9321008M6000
O-ring (6g8)
Loading…
↗
5
9038610M7000
Bush(6g8)
Loading…
↗
6
953801070000
Nut (682)
Loading…
↗
7
9020210M0300
Washer, plate (683)
Loading…
↗
8
6G8443670000
Rubber, water seal 3
Loading…
↗
9
9310113M2700
Oil seal (6g8)
Loading…
↗
10
936061201900
Pin, dowel (614)
Loading…
↗
11
975950652000
Bolt(7u8)
Loading…
↗
12
6G8451350000
Pipe 1
Loading…
↗
13
6G8427160000
Seal
Loading…
↗
14
6G8411310100
Manifold, ext. 1
Loading…
↗
15
6G8411380000
Seal, exhaust 1
Loading…
↗
16
9010506M3300
Bolt (6g8)
Loading…
↗
17
6G841133A000
Gasket,exhaust manifold 1
Loading…
↗
18
6G845111134D
Casing, upper
Loading…
↗
19
6G8821490000
Wire, lead 3
Loading…
↗
20
970950601200
Bolt(gh1)
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
6G8451511000
Cover, upper casing
Loading…
↗
23
6G8451360000
Pipe
Loading…
↗
24
6G845113A100
Gasket, upper casing
Loading…
↗
26
970950804000
Bolt, hexagon
Loading…
↗
27
929900860000
Washer, plain (663)
Loading…
↗
28
6G842741004D
Apron
Loading…
↗
29
6G8427910000
Mark 1
Loading…
↗
30
6G842771004D
Apron
Loading…
↗
31
6G8427920000
Mark 2
Loading…
↗
32
9015706M0400
Screw, pan head(62j)
Loading…
↗
33
6G8113550000
Seal, cylinder
Loading…
↗
