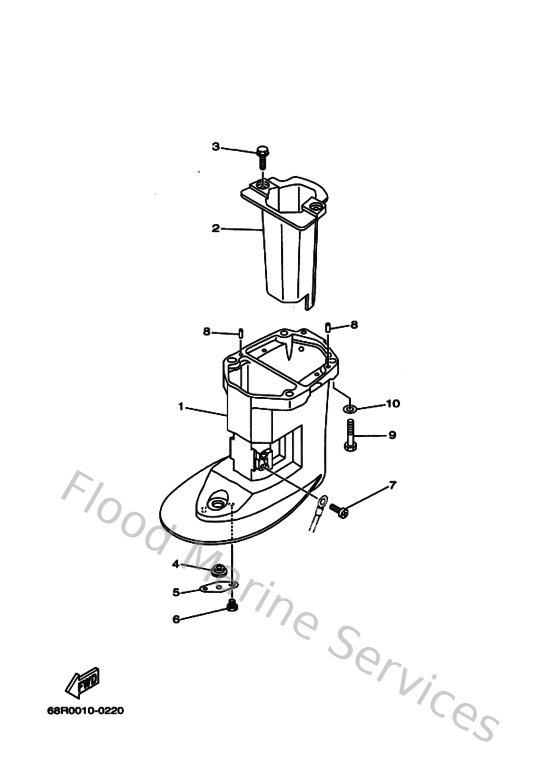

Diagram: Upper Casing

Diagram

Parts List

Reference
Description
Price


1
68T45111004D
Casing upper
Loading…

↗
2
60RE4711005B
Muffler 1
Loading…

↗
3
975750651400
Bolt, hexagon w/w deep recess
Loading…

↗
4
9048014M5400
Grommet
Loading…

↗
5
68T453210000
Plate
Loading…

↗
6
970800600800
Bolt (fj1)
Loading…

↗
7
978850500800
Screw, pan head
Loading…

↗
8
9360412M0700
Pin, dowel (688)
Loading…

↗
9
970750803500
Bolt(70w)
Loading…

↗
10
929950860000
Washer, plain (663)
Loading…

↗
