L225FETO (1998)
Upper Casing

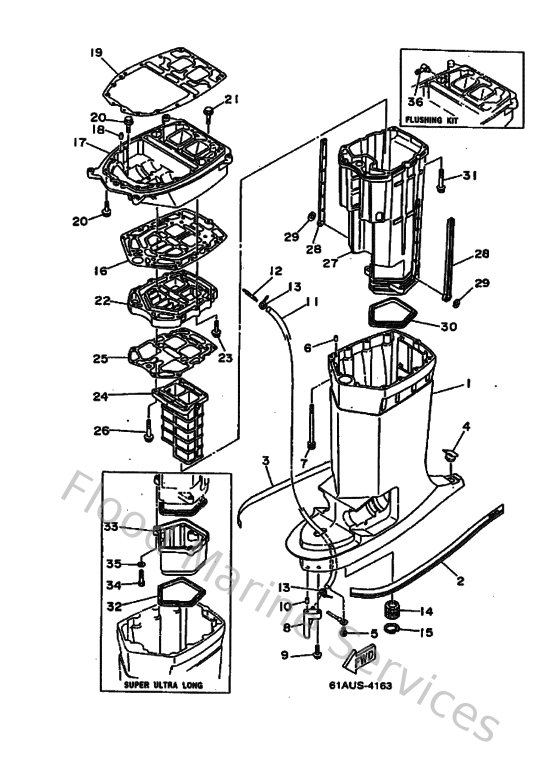

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
61A45111218D
Casing, Upper
Loading…
↗
2
61A42791S000
Mark 1
Loading…
↗
3
61A42792S000
Mark
Loading…
↗
4
61A451550000
Cap
Loading…
↗
5
975950651000
Bolt, hexagon w/w deep recess
Loading…
↗
6
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
7
9011908M7800
Bolt, with washer
Loading…
↗
8
61A453780000
Nipple, hose
Loading…
↗
9
9011906M4900
Bolt, with washer
Loading…
↗
10
936061201900
Pin, dowel (614)
Loading…
↗
11
9044507MF000
Hose (l1160)
Loading…
↗
12
6E5835580000
End, nipple
Loading…
↗
13
904651009800
Clamp
Loading…
↗
14
6E5453180000
Bushing, drive shaft 3
Loading…
↗
15
9342036M0100
Circlip (6a0)
Loading…
↗
16
61A45114A000
Gasket, upper casing
Loading…
↗
17
61A411371194
Guide, Exhaust
Loading…
↗
19
61A45113A000
Gasket, upper casing
Loading…
↗
20
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
21
975950853500
Bolt, hexagon w/w deep recess
Loading…
↗
22
61A41131005B
Manifold, ext. 1
Loading…
↗
24
61A41132015B
Manifold, exhaust
Loading…
↗
25
61A41134A000
Gasket, exhaust manifold
Loading…
↗
26
975950855000
Bolt, With Washer
Loading…
↗
27
61A1471130CA
Muffler 1
Loading…
↗
28
6E5147370000
Damper, muffler
Loading…
↗
29
9018305M0200
Nut, spring (6e5)
Loading…
↗
30
61A451230100
Gasket, muffler
Loading…
↗
31
9011908M7400
Bolt, with washer(61a)
Loading…
↗
33
61A1472130CA
Muffler 2
Loading…
↗
34
970950603500
Bolt(j52)
Loading…
↗
35
929900660000
Washer, plain (646)
Loading…
↗
36
6H1113720000
Nipple, hose
Loading…
↗
