Yamaha Outboard Parts - Upper Casing - LF115AET (2000) | Flood Marine

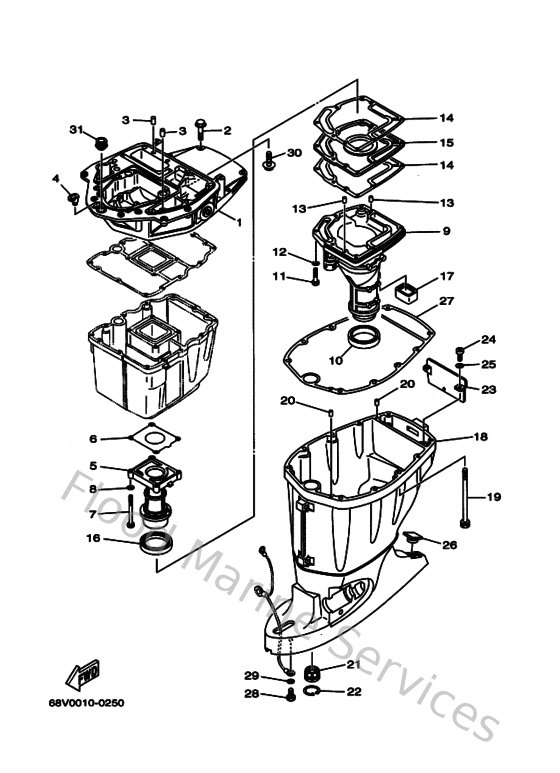

Diagram: Upper Casing

Diagram

Parts List

Reference
Description
Price


1
67F411370194
Guide, exhaust
Loading…

↗
2
975750854000
Bolt, hexagon w/w deep recess
Loading…

↗
3
9360816M1600
Pin, dowel(6t4)
Loading…

↗
4
6G1427270000
Grommet
Loading…

↗
5
67F4113101CA
Manifold, ext. 1
Loading…

↗
6
67F41133A000
Gasket, exhaust manifold 1
Loading…

↗
7
970750607000
Bolt(4kg)
Loading…

↗
8
929900660000
Washer, plain (646)
Loading…

↗
9
68V14711305B
Muffler 1
Loading…

↗
10
68V451230000
Gasket, muffler
Loading…

↗
11
970800603000
Bolt(jf7)
Loading…

↗
12
929950660000
Washer, plain (646)
Loading…

↗
13
9360619M2300
Pin, dowel
Loading…

↗
14
67F41134A000
Gasket, exhaust manifold
Loading…

↗
15
67F4518100CA
Plate
Loading…

↗
16
67F411380000
Seal, ext. 1
Loading…

↗
17
67F451270000
Seal
Loading…

↗
18
68V45111308D
Casing, upper
Loading…

↗
19
9011910M0800
Bolt, with washer
Loading…

↗
21
6E5453180000
Bushing, drive shaft 3
Loading…

↗
22
9342036M0100
Circlip (6a0)
Loading…

↗
23
67F451510000
Cover, upper casing
Loading…

↗
24
985800601600
Screw pan head
Loading…

↗
26
6H3451550000
Cap
Loading…

↗
27
67F451130000
Gasket, upper casing
Loading…

↗
28
970850601000
Bolt
Loading…

↗
30
9011908M5800
Bolt, with washer
Loading…

↗
31
67F427240000
Grommet
Loading…

↗
