Z200NETO (2001)
Upper Casing

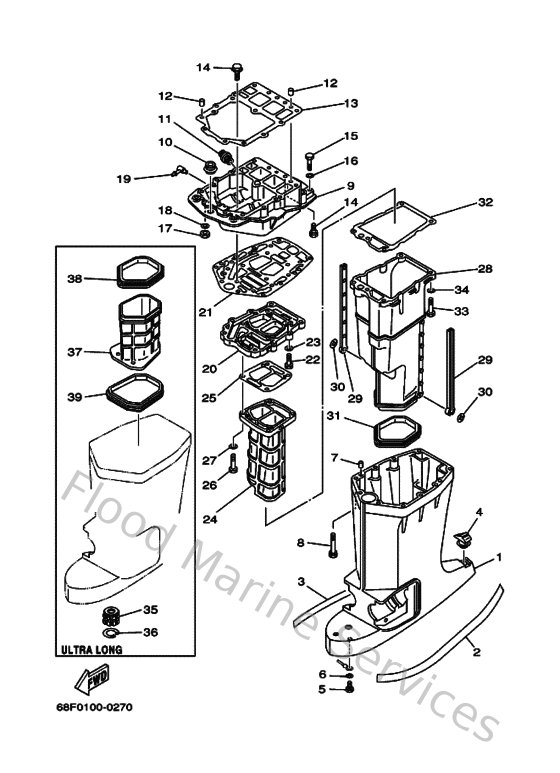

Diagram: Upper Casing
Parts List
Reference
Description
Price
1
6E545111028D
Casing, upper
Loading…
↗
2
6R3427914100
Mark 1
Loading…
↗
3
6R3427924100
Mark
Loading…
↗
4
6E5451550000
Cap
Loading…
↗
5
970950601000
Bolt
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
8
9011908M7800
Bolt, with washer
Loading…
↗
9
6G5411371194
Guide, exhaust
Loading…
↗
10
6E5427240000
Grommet
Loading…
↗
11
6G5125810000
Joint, hose
Loading…
↗
13
68F451130000
Gasket, upper casing
Loading…
↗
14
9011908M7900
Bolt, hexagon (fj1)
Loading…
↗
15
970950804500
Bolt, hexagon
Loading…
↗
16
929900810000
Ybs67-8 washer, spring
Loading…
↗
17
953800870000
Nut(661)
Loading…
↗
18
929950810000
Ybs67-8 washer, spring
Loading…
↗
19
6H1113720000
Nipple, hose
Loading…
↗
20
6G54113101CA
Manifold, ext. 1
Loading…
↗
21
6G545114A000
Gasket, upper casing
Loading…
↗
22
970950803000
Bolt, hexagon (fj1)
Loading…
↗
23
929950860000
Washer, plain (663)
Loading…
↗
24
64D4113200CA
Manifold, exhaust
Loading…
↗
25
6G541134A000
Gasket, exhaust manifold
Loading…
↗
28
6E51471101CA
Muffler 1
Loading…
↗
29
6E5147370000
Damper, muffler
Loading…
↗
30
9018305M0200
Nut, spring (6e5)
Loading…
↗
31
6E5451230000
Gasket, muffler
Loading…
↗
32
6E541135A000
Gasket, exhaust manifold
Loading…
↗
34
929900860000
Washer, plain (663)
Loading…
↗
35
6E5453180000
Bushing, drive shaft 3
Loading…
↗
36
9342036M0100
Circlip (6a0)
Loading…
↗
37
64D14721205B
Muffler 2
Loading…
↗
38
64D451230000
Gasket, muffler
Loading…
↗
39
64D453750000
Damper, seal
Loading…
↗
