3AMH (1994)
Upper Casing & Bracket

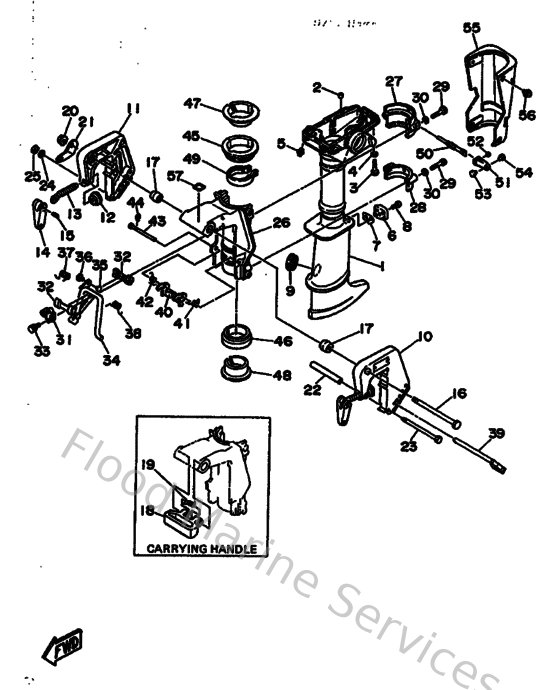

Diagram: Upper Casing & Bracket
Parts List
Reference
Description
Price
2
9360410M0300
Pin, dowel (688)
Loading…
↗
3
970950603000
Bolt(jf7)
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
9370006M0300
Nipple, grease(6a1)
Loading…
↗
6
6L5451520000
Cover, upper casing 2
Loading…
↗
7
6L545115A000
Gasket,upper casing 3
Loading…
↗
8
9014905M0800
Ybs53-525 screw,flat head
Loading…
↗
9
647451510100
Cover, upper casing
Loading…
↗
10
6L543111004D
Bracket Clamp 1
Loading…
↗
11
6L543112004D
Bracket Clamp 2
Loading…
↗
12
648431140100
Pad, transom clamp
Loading…
↗
13
6E0431160100
Screw, transom clamp
Loading…
↗
14
6EEG31180000
Handle, transom cl
Loading…
↗
15
9025404M0000
Pin(6a1)
Loading…
↗
16
9010108M1000
Bolt(6l5)
Loading…
↗
17
6G8431360000
Piece, friction
Loading…
↗
18
6L5421210000
Bracket
Loading…
↗
19
9050816M3000
Spring, torsion(6l5)
Loading…
↗
20
957800830000
Nut, nylon (6j8)
Loading…
↗
21
6A1431130100
Plate, clamp bracket
Loading…
↗
22
9038706M1100
Collar
Loading…
↗
23
901010633500
Bolt, hexagon (624)
Loading…
↗
25
953800660000
Nut(661)
Loading…
↗
26
6L543311018D
Bracket, swivel 1
Loading…
↗
27
6L544511004D
Cover, upper mount
Loading…
↗
28
6L544553004D
Cover, lower mount
Loading…
↗
29
970950603500
Bolt(j52)
Loading…
↗
31
6E0433130094
Bracket, swivel 3
Loading…
↗
32
620431890000
Bushing
Loading…
↗
33
958950602000
Bolt, flange(jk3)
Loading…
↗
34
6L5431810000
Lever, tilt stop 1
Loading…
↗
35
6L5441962000
Indicator 3
Loading…
↗
36
6L5441972000
Indicator 4
Loading…
↗
37
905081602000
Spring 6474319800
Loading…
↗
38
905081602100
Spring 6474318800
Loading…
↗
39
6L5431600000
Tilt rod assembly
Loading…
↗
40
6L5436140000
Plate, tilt lock
Loading…
↗
41
9050808M2600
Spring, torsion(6l5)
Loading…
↗
42
9050808M2700
Spring, torsion(6l5)
Loading…
↗
43
6L5436590000
Shaft, reverse lock
Loading…
↗
44
990800560000
Circlip(22k)
Loading…
↗
45
6L5425370000
Bushing, pivot shaft
Loading…
↗
46
6L5425380000
Bushing, pivot shaft
Loading…
↗
47
6L5425390000
Bushing, pivot shaft
Loading…
↗
48
6L5425490000
Bushing, pivot shaft
Loading…
↗
49
6E0425280300
Plate, friction
Loading…
↗
50
6L5425290100
Screw, friction piece
Loading…
↗
51
6L5425610000
Knob, steering lock
Loading…
↗
52
9026604M0500
Rivet(6l5)
Loading…
↗
55
6L5433181100
Cover
Loading…
↗
56
9015906M1000
Screw, with washer(6l5)
Loading…
↗
57
6A1427920100
Mark (100:1)
Loading…
↗
