Yamaha Outboard Parts - Upper Casing . Bracket - 3AMH (1996) | Flood Marine

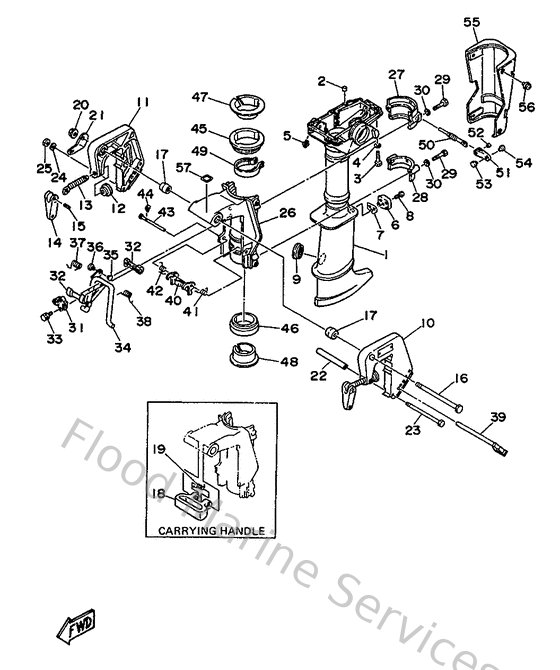

Diagram: Upper Casing . Bracket

Diagram

Parts List

Reference
Description
Price


6
6L5451520000
Cover, upper casing 2
Loading…

↗
7
6L545115A000
Gasket,upper casing 3
Loading…

↗
9
647451510100
Cover, upper casing
Loading…

↗
10
6L543111014D
Bracket Clamp 1
Loading…

↗
11
6GEG3112008D
Bracket Clamp 2
Loading…

↗
12
648431140100
Pad, transom clamp
Loading…

↗
13
6E0431160100
Screw, transom clamp
Loading…

↗
14
6EEG31180000
Handle, transom cl
Loading…

↗
17
6G8431360000
Piece, friction
Loading…

↗
18
6L5421210000
Bracket
Loading…

↗
21
6A1431130100
Plate, clamp bracket
Loading…

↗
26
6L543311014D
Bracket, swivel 1
Loading…

↗
27
6L544511008D
Cover, upper mount
Loading…

↗
28
6L544553004D
Cover, lower mount
Loading…

↗
31
6E0433130094
Bracket, swivel 3
Loading…

↗
32
620431890000
Bushing
Loading…

↗
34
6L5431810000
Lever, tilt stop 1
Loading…

↗
35
6L5441962000
Indicator 3
Loading…

↗
36
6L5441972000
Indicator 4
Loading…

↗
39
6L5431600000
Tilt rod assembly
Loading…

↗
40
6L5436140000
Plate, tilt lock
Loading…

↗
43
6L5436590000
Shaft, reverse lock
Loading…

↗
45
6L5425370000
Bushing, pivot shaft
Loading…

↗
46
6L5425380000
Bushing, pivot shaft
Loading…

↗
47
6L5425390000
Bushing, pivot shaft
Loading…

↗
48
6L5425490000
Bushing, pivot shaft
Loading…

↗
49
6E0425280300
Plate, friction
Loading…

↗
50
6L5425290100
Screw, friction piece
Loading…

↗
51
6L5425610000
Knob, steering lock
Loading…

↗
55
6L5433181100
Cover
Loading…

↗
57
6A1427920100
Mark (100:1)
Loading…

↗
