F100CET (2003)
VALVE

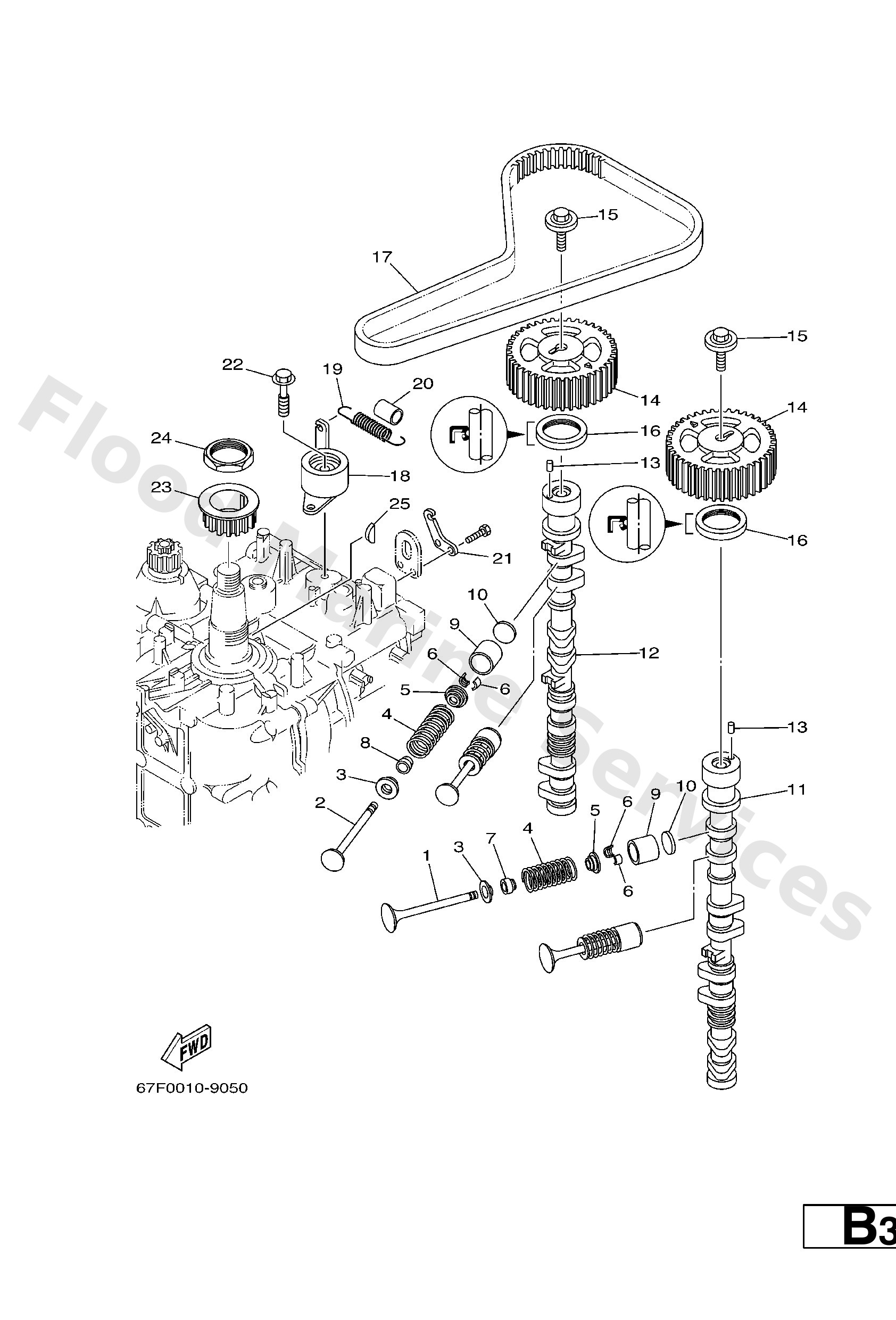

Diagram: VALVE
Parts List
Reference
Description
Price
1
68V−12111−00
Valve, intake
Loading…
↗
2
68V−12121−00
Valve, exhaust
Loading…
↗
3
67F−12116−00
Seat, valve spring
Loading…
↗
4
67F−12114−00
Spring, valve outer
Loading…
↗
5
67F−12117−00
Retainer, valve spring
Loading…
↗
6
67F−12118−00
Cotter, valve
Loading…
↗
7
K0A−A3721−00
Seal, valve stem
Loading…
↗
8
K0A−A3722−00
Seal, valve stem 2
Loading…
↗
9
67F−12153−00
Lifter, valve
Loading…
↗
10
67F−12168−C0
UR
Pad, adjusting (2.275)
Loading…
↗
10
67F−12168−J0
UR
Pad, adjusting (2.425)
Loading…
↗
10
67F−12168−H0
UR
Pad, adjusting (2.400)
Loading…
↗
10
67F−12168−G0
UR
Pad, adjusting (2.375)
Loading…
↗
10
67F−12168−F0
UR
Pad, adjusting (2.350)
Loading…
↗
10
67F−12168−E0
UR
Pad, adjusting (2.325)
Loading…
↗
10
67F−12168−D0
UR
Pad, adjusting (2.300)
Loading…
↗
10
67F−12168−B0
UR
Pad, adjusting (2.250)
Loading…
↗
10
67F−12168−A0
UR
Pad, adjusting (2.225)
Loading…
↗
10
67F−12168−70
UR
Pad, adjusting (2.175)
Loading…
↗
10
67F−12168−80
UR
Pad, adjusting (2.200)
Loading…
↗
10
67F−12168−60
UR
Pad, adjusting (2.150)
Loading…
↗
10
67F−12168−50
UR
Pad, adjusting (2.125)
Loading…
↗
10
67F−12168−40
UR
Pad, adjusting (2.100)
Loading…
↗
10
67F−12168−30
UR
Pad, adjusting (2.075)
Loading…
↗
10
67F−12168−20
UR
Pad, adjusting (2.050)
Loading…
↗
10
67F−12168−10
UR
Pad, adjusting (2.025)
Loading…
↗
10
67F−12168−00
UR
Pad, adjusting (2.000)
Loading…
↗
10
67F−12169−10
UR
Pad, adjusting (2.800)
Loading…
↗
10
67F−12169−20
UR
Pad, adjusting (2.825)
Loading…
↗
10
67F−12169−30
UR
Pad, adjusting (2.850)
Loading…
↗
10
67F−12169−40
UR
Pad, adjusting (2.875)
Loading…
↗
10
67F−12169−50
UR
Pad, adjusting (2.900)
Loading…
↗
10
67F−12169−60
UR
Pad, adjusting (2.925)
Loading…
↗
10
67F−12169−70
UR
Pad, adjusting (2.950)
Loading…
↗
10
67F−12169−80
UR
Pad, adjusting (2.975)
Loading…
↗
10
67F−12169−A0
UR
Pad, adjusting (3.000)
Loading…
↗
10
67F−12169−B0
UR
Pad, adjusting (3.025)
Loading…
↗
10
67F−12169−C0
UR
Pad, adjusting (3.050)
Loading…
↗
10
67F−12169−D0
UR
Pad, adjusting (3.075)
Loading…
↗
10
67F−12169−E0
UR
Pad, adjusting (3.100)
Loading…
↗
10
67F−12168−X0
UR
Pad, adjusting (2.725)
Loading…
↗
10
67F−12168−Y0
UR
Pad, adjusting (2.750)
Loading…
↗
10
67F−12169−00
UR
Pad, adjusting (2.775)
Loading…
↗
10
67F−12168−K0
UR
Pad, adjusting (2.450)
Loading…
↗
10
67F−12168−L0
UR
Pad, adjusting (2.475)
Loading…
↗
10
67F−12168−M0
UR
Pad, adjusting (2.500)
Loading…
↗
10
67F−12168−N0
UR
Pad, adjusting (2.525)
Loading…
↗
10
67F−12168−P0
UR
Pad, adjusting (2.550)
Loading…
↗
10
67F−12168−R0
UR
Pad, adjusting (2.575)
Loading…
↗
10
67F−12168−S0
UR
Pad, adjusting (2.600)
Loading…
↗
10
67F−12168−T0
UR
Pad, adjusting (2.625)
Loading…
↗
10
67F−12168−U0
UR
Pad, adjusting (2.650)
Loading…
↗
10
67F−12168−V0
UR
Pad, adjusting (2.675)
Loading…
↗
10
67F−12168−W0
UR
Pad, adjusting (2.700)
Loading…
↗
10
67F−12169−N0
UR
Pad, adjusting (3.300)
Loading…
↗
10
67F−12169−M0
UR
Pad, adjusting (3.275)
Loading…
↗
10
67F−12169−L0
UR
Pad, adjusting (3.250)
Loading…
↗
10
67F−12169−K0
UR
Pad, adjusting (3.225)
Loading…
↗
10
67F−12169−H0
UR
Pad, adjusting (3.175)
Loading…
↗
10
67F−12169−G0
UR
Pad, adjusting (3.150)
Loading…
↗
10
67F−12169−F0
UR
Pad, adjusting (3.125)
Loading…
↗
10
67F−12169−J0
UR
Pad, adjusting (3.200)
Loading…
↗
11
67F−12171−00
Camshaft 1
Loading…
↗
12
67F−12181−00
Camshaft 2
Loading…
↗
13
93605−10108
Pin, dowel (8g8)
Loading…
↗
14
67F−11537−00
Gear, driven
Loading…
↗
15
90119−10M06
Bolt
Loading…
↗
16
93102−38M59
Oil seal
Loading…
↗
17
67F−46241−00
Belt
Loading…
↗
18
67F−11590−00
Tensioner assembly
Loading…
↗
19
90506−16M39
Spring, tension
Loading…
↗
20
90445−15M03
Hose (l23)
Loading…
↗
21
67F−11595−00
Plate,valve
Loading…
↗
22
90119−10M72
Bolt, with washer(6m6)
Loading…
↗
23
67F−11536−00
5−
Loading…
↗
24
90170−40003
Nut
Loading…
↗
25
90280−04008
Key woodruff 604115450000
Loading…
↗
