F100DET (2018)
VALVE

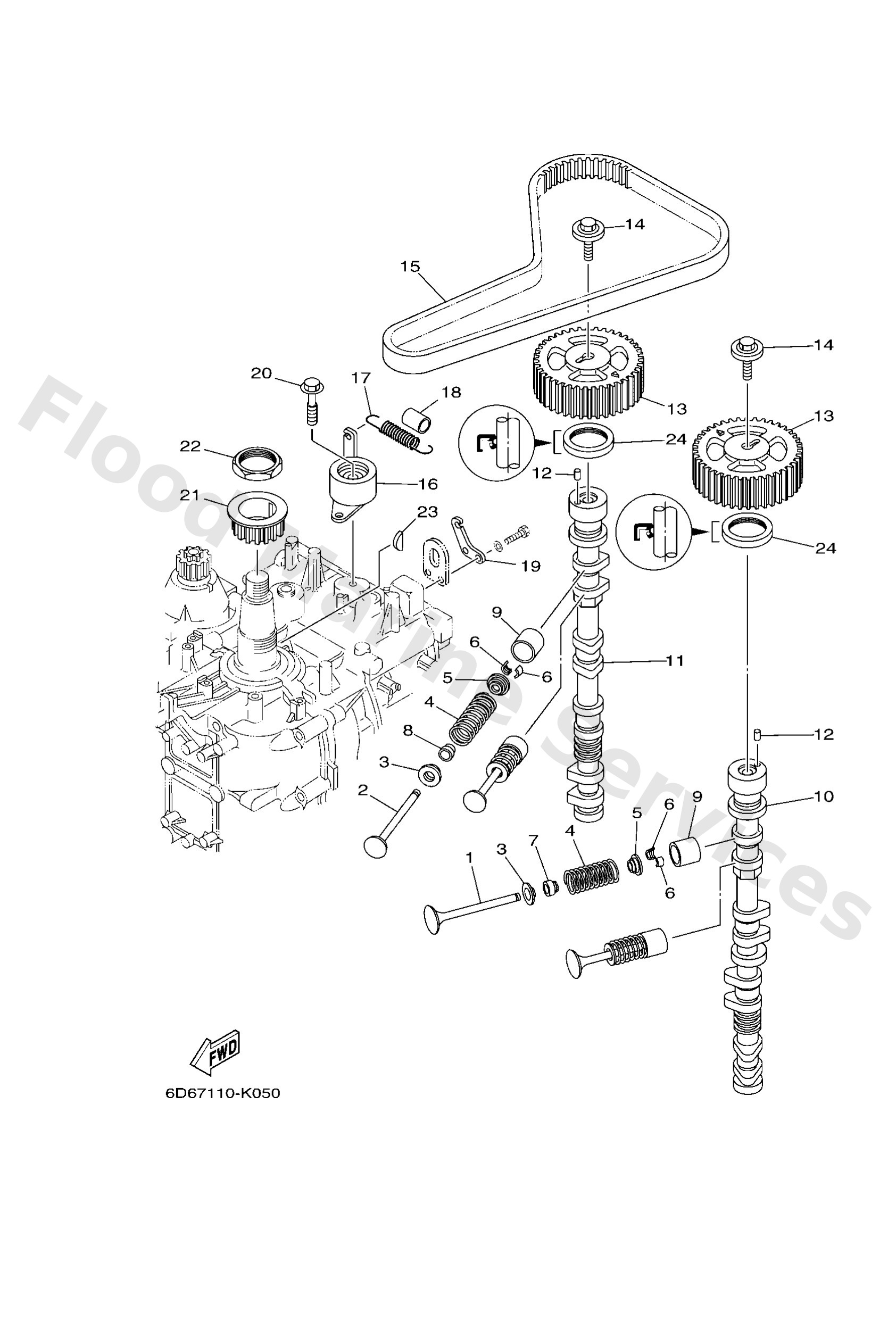

Diagram: VALVE
Parts List
Reference
Description
Price
1
6D81211100
Valve, intake
Loading…
↗
2
6D81212110
Valve, exhaust
Loading…
↗
3
6D81211600
Seat, valve spring
Loading…
↗
4
6D81211300
Spring, valve inner
Loading…
↗
5
26H1211700
Retainer, valve spring
Loading…
↗
6
4G01211800
Cotter, valve
Loading…
↗
7
K0AA372100
Seal, valve stem
Loading…
↗
8
K0AA372200
Seal, valve stem 2
Loading…
↗
9
6D812153J0
UR
Lifter, valve (48)
Loading…
↗
9
6D812153H0
UR
Lifter, valve (46)
Loading…
↗
9
6D812153G0
UR
Lifter, valve (44)
Loading…
↗
9
6D812153F0
UR
Lifter, valve (42)
Loading…
↗
9
6D812153E0
UR
Lifter, valve (40)
Loading…
↗
9
6D812153D0
UR
Lifter, valve (38)
Loading…
↗
9
6D812153C0
UR
Lifter, valve (36)
Loading…
↗
9
6D812153B0
UR
Lifter, valve (34)
Loading…
↗
9
6D812153A0
UR
Lifter, valve (32)
Loading…
↗
9
6D81215380
UR
Lifter, valve (28)
Loading…
↗
9
6D81215370
UR
Lifter, valve (26)
Loading…
↗
9
6D81215360
UR
Lifter, valve (24)
Loading…
↗
9
6D81215350
UR
Lifter, valve (22)
Loading…
↗
9
6D81215340
UR
Lifter, valve (20)
Loading…
↗
9
6D81215330
UR
Lifter, valve (18)
Loading…
↗
9
6D81215320
UR
Lifter, valve (16)
Loading…
↗
9
6D81215310
UR
Lifter, valve (14)
Loading…
↗
9
6D81215300
UR
Lifter, valve (12)
Loading…
↗
9
6D81215390
UR
Lifter, valve (30)
Loading…
↗
9
6D812153U0
UR
Lifter, valve (66)
Loading…
↗
9
6D812153V0
UR
Lifter, valve (68)
Loading…
↗
9
6D812153T0
UR
Lifter, valve (64)
Loading…
↗
9
6D812153S0
UR
Lifter, valve (62)
Loading…
↗
9
6D812153R0
UR
Lifter, valve (60)
Loading…
↗
9
6D812153N0
UR
Lifter, valve (56)
Loading…
↗
9
6D812153M0
UR
Lifter, valve (54)
Loading…
↗
9
6D812153L0
UR
Lifter, valve (52)
Loading…
↗
9
6D812153K0
UR
Lifter, valve (50)
Loading…
↗
9
6D812153P0
UR
Lifter, valve (58)
Loading…
↗
10
6D81217100
Camshaft 1
Loading…
↗
10
6D91217100
Camshaft 1
Loading…
↗
11
6D81218100
Camshaft 2
Loading…
↗
12
9360510108
Pin, dowel (8g8)
Loading…
↗
13
67F1153700
Gear, driven
Loading…
↗
14
9011910050
Bolt, with washer
Loading…
↗
15
67F4624100
Belt
Loading…
↗
16
67F1159000
Tensioner assembly
Loading…
↗
17
9050616M39
Spring, tension
Loading…
↗
18
9044515M03
Hose (l23)
Loading…
↗
19
67F1159500
Plate,valve
Loading…
↗
20
9011910M72
Bolt, with washer(6m6)
Loading…
↗
21
6D81153601
Gear, drive
Loading…
↗
22
9017040008
Nut
Loading…
↗
23
9028004008
Key woodruff 604115450000
Loading…
↗
24
9310238008
Oil seal
Loading…
↗
