F150AET (2005)
VALVE

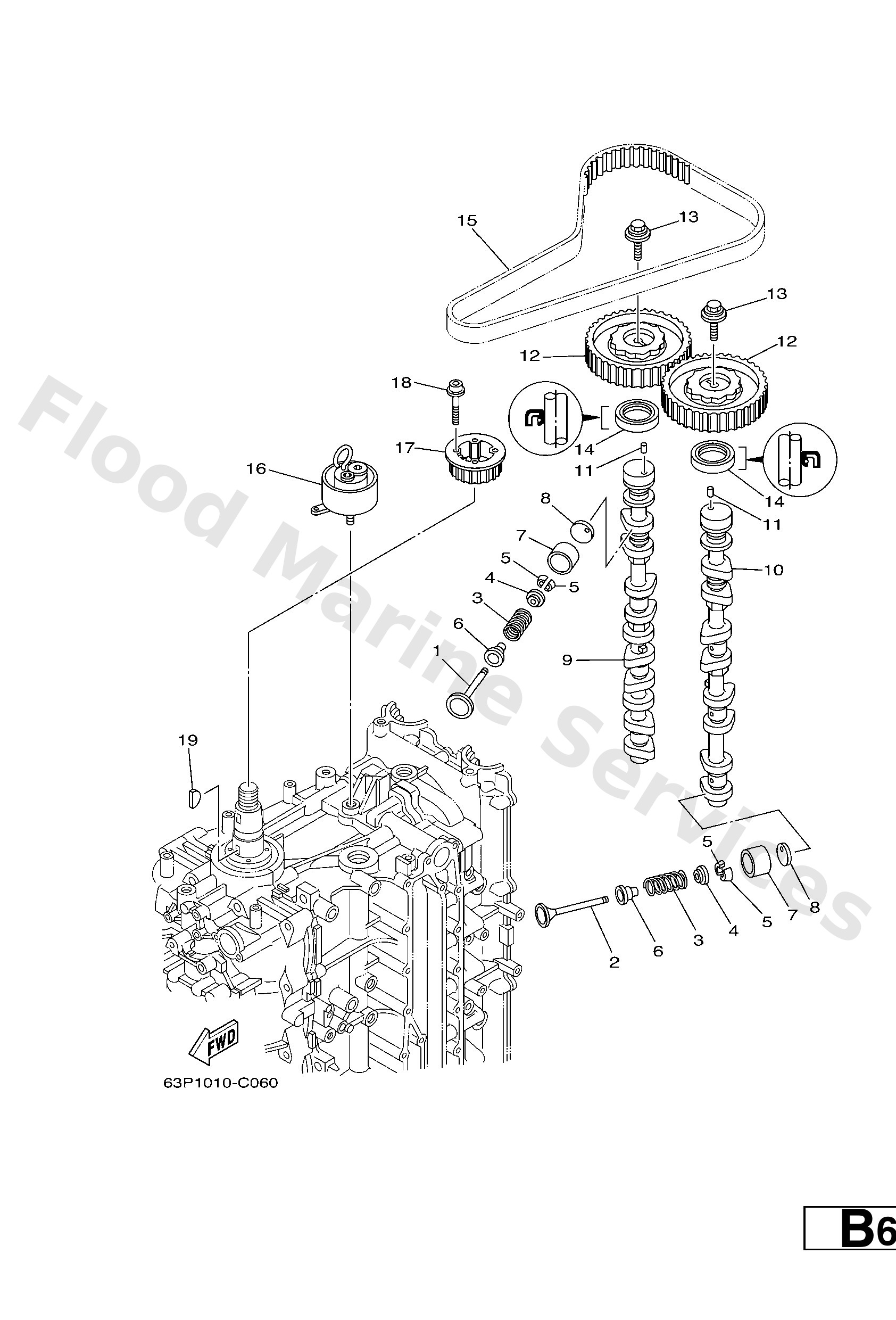

Diagram: VALVE
Parts List
Reference
Description
Price
1
69J1211100
Valve, intake
Loading…
↗
2
69J1212100
Valve, exhaust
Loading…
↗
3
69J1211301
Spring, valve inner
Loading…
↗
4
69J1211701
Retainer, valve spring
Loading…
↗
5
69J1211800
Cotter, valve
Loading…
↗
6
69J1211900
Seal, valve stem
Loading…
↗
7
69J1215300
Lifter, valve
Loading…
↗
8
69J12168K0
UR
Pad, adjusting (2.700)
Loading…
↗
8
69J12168J0
UR
Pad, adjusting (2.680)
Loading…
↗
8
69J12168H0
UR
Pad, Adjusting (2.660)
Loading…
↗
8
69J12168G0
UR
Pad, adjusting (2.640)
Loading…
↗
8
69J12168F0
UR
Pad, adjusting (2.620)
Loading…
↗
8
69J12168E0
UR
Pad, adjusting (2.600)
Loading…
↗
8
69J12168D0
UR
Pad, adjusting (2.580)
Loading…
↗
8
69J12168C0
UR
Pad, adjusting (2.560)
Loading…
↗
8
69J12168B0
UR
Pad, adjusting (2.540)
Loading…
↗
8
69J12168A0
UR
Pad, adjusting (2.520)
Loading…
↗
8
69J1216880
UR
Pad, adjusting (2.480)
Loading…
↗
8
69J1216870
UR
Pad, adjusting (2.460)
Loading…
↗
8
69J1216860
UR
Pad, adjusting (2.440)
Loading…
↗
8
69J1216850
UR
Pad, adjusting (2.420)
Loading…
↗
8
69J1216840
UR
Pad, adjusting (2.400)
Loading…
↗
8
69J1216830
UR
Pad, adjusting (2.380)
Loading…
↗
8
69J1216820
UR
Pad, adjusting (2.360)
Loading…
↗
8
69J1216810
UR
Pad, adjusting (2.340)
Loading…
↗
8
69J1216800
UR
Pad, adjusting (2.320)
Loading…
↗
8
69J1216890
UR
Pad, adjusting (2.500)
Loading…
↗
8
69J12168U0
UR
Pad, adjusting (2.860)
Loading…
↗
8
69J1216900
UR
Pad, adjusting (2.960)
Loading…
↗
8
69J12168Y0
UR
Pad, adjusting (2.940)
Loading…
↗
8
69J12168X0
UR
Pad, adjusting (2.920)
Loading…
↗
8
69J12168W0
UR
Pad, adjusting (2.900)
Loading…
↗
8
69J12168V0
UR
Pad, adjusting (2.880)
Loading…
↗
8
69J12168S0
UR
Pad, adjusting (2.820)
Loading…
↗
8
69J12168R0
UR
Pad, adjusting (2.800)
Loading…
↗
8
69J12168P0
UR
Pad, Adjusting (2.780)
Loading…
↗
8
69J12168N0
UR
Pad, adjusting (2.760)
Loading…
↗
8
69J12168M0
UR
Pad, adjusting (2.740)
Loading…
↗
8
69J12168L0
UR
Pad, adjusting (2.720)
Loading…
↗
8
69J12168T0
UR
Pad, Adjusting (2.840)
Loading…
↗
9
63P1217100
Camshaft 1
Loading…
↗
10
63P1218100
Camshaft 2
Loading…
↗
11
9360510108
Pin, dowel (8g8)
Loading…
↗
12
63P1153700
Gear, driven
Loading…
↗
13
9011910M06
Bolt
Loading…
↗
14
9310238M59
Oil seal
Loading…
↗
15
63P4624100
Belt
Loading…
↗
16
63P1159000
Tensioner assembly
Loading…
↗
17
63P1153600
Go to P/N ) PE0-OM-120035
-
Loading…
↗
18
9011005020
Bolt, hexagon socket head
Loading…
↗
19
9028004008
Go to P/N ) PE0-OM-120035
Key woodruff 604115450000
Loading…
↗
