F15AEH (2004)
VALVE

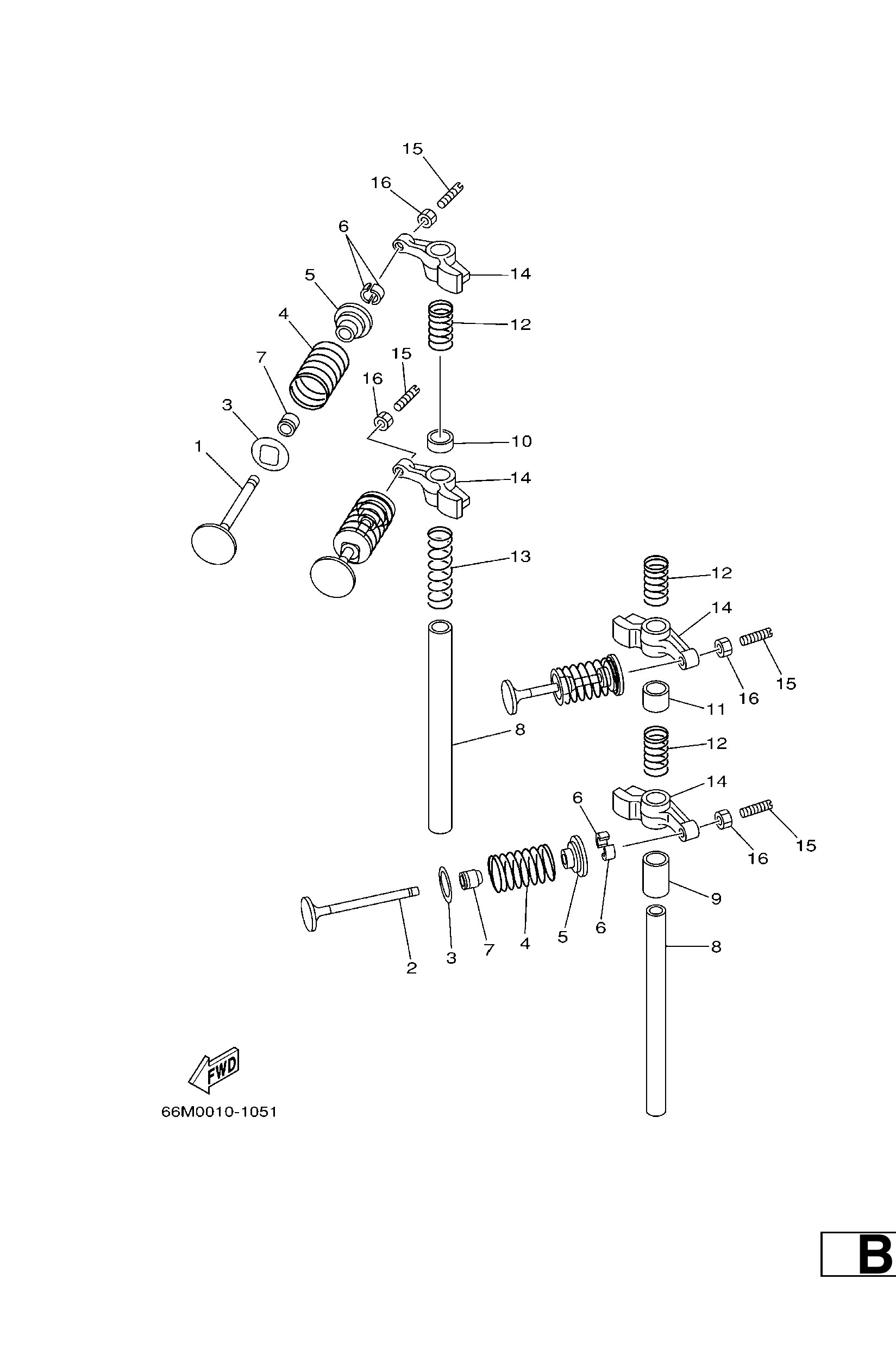

Diagram: VALVE
Parts List
Reference
Description
Price
1
66M1211100
Valve, intake
Loading…
↗
2
66M1212100
Valve, exhaust
Loading…
↗
3
66M1211600
Seat, valve spring
Loading…
↗
4
66M1211300
Spring, valve inner
Loading…
↗
5
30X1211700
Retainer, valve spring
Loading…
↗
6
30X1211800
Cotter, valve
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
66M1214600
Shaft, rocker
Loading…
↗
9
9038713M56
Collar (6g8)
Loading…
↗
10
9038713001
Collar
Loading…
↗
11
9038713002
Collar
Loading…
↗
12
9050112M40
Spring, compression (6g8)
Loading…
↗
13
9050112M41
Spring, Compression
Loading…
↗
14
66M1215110
Arm, Valve Rocker
Loading…
↗
15
62Y1215900
Screw, Valve Adjusting
Loading…
↗
16
62Y1215800
Nut, lock
Loading…
↗
