F20GMH (2019)
VALVE

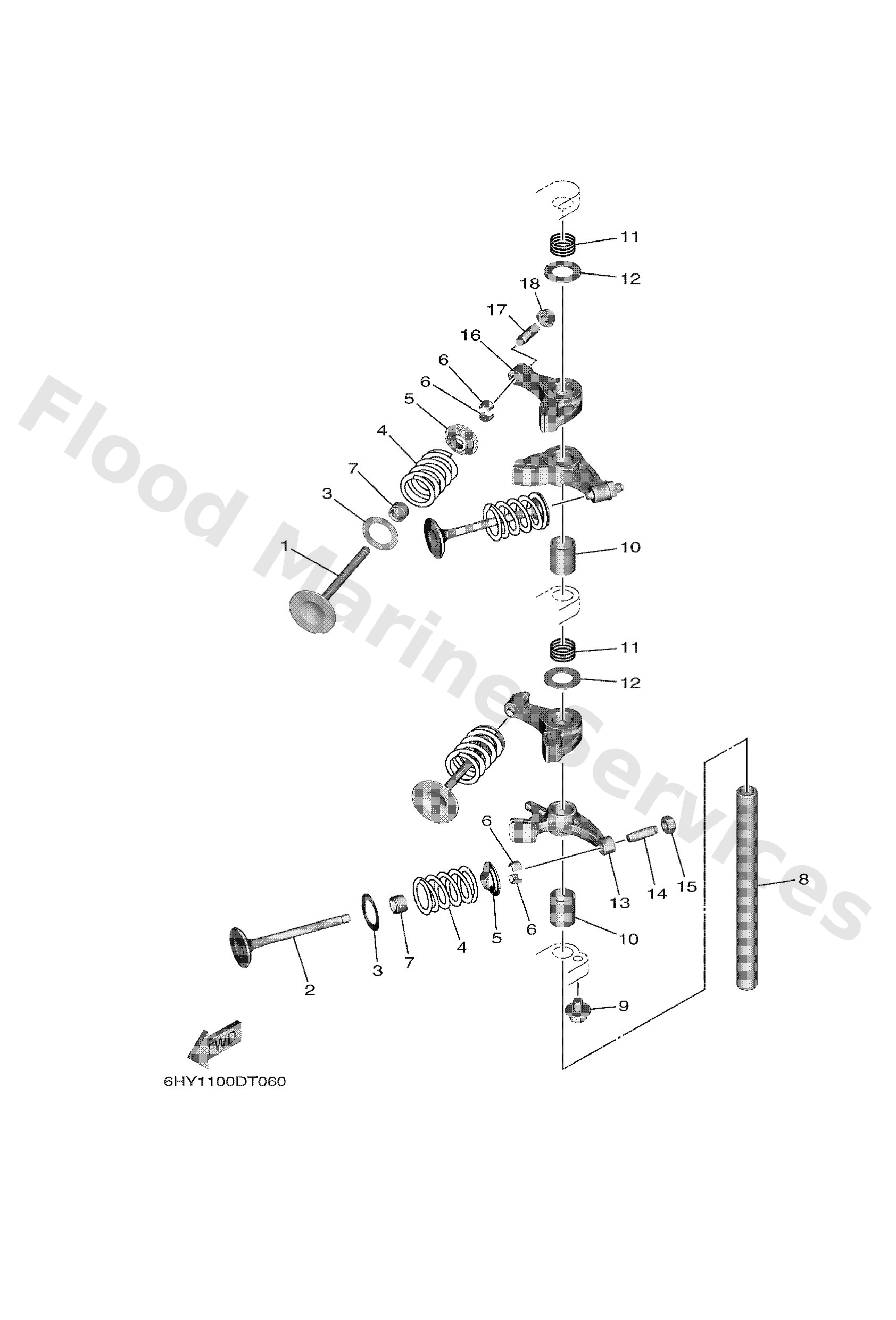

Diagram: VALVE
Parts List
Reference
Description
Price
1
6FM1211100
Valve, intake
Loading…
↗
2
6FM1212100
Valve, exhaust
Loading…
↗
3
62Y1211600
Seat, valve spring
Loading…
↗
4
3YF1211300
Spring, valve inner
Loading…
↗
5
30X1211700
Retainer, valve spring
Loading…
↗
6
30X1211800
Cotter, valve
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
66M1214600
Shaft, rocker
Loading…
↗
9
9011906054
Bolt, with washer
Loading…
↗
10
9038713006
Collar
Loading…
↗
11
90501120A5
Spring, compression
Loading…
↗
12
90201131M4
Washer, plate(3fc)
Loading…
↗
13
6AH1215100
Arm, valve rocker
Loading…
↗
14
64J1215900
Screw, valve adjusting
Loading…
↗
15
62Y1215800
Nut, lock
Loading…
↗
16
6FM1215100
Arm, valve rocker
Loading…
↗
17
6C51215900
Screw, valve adjusting
Loading…
↗
18
6C51215800
Nut, lock
Loading…
↗
