F40NET (2025)
VALVE

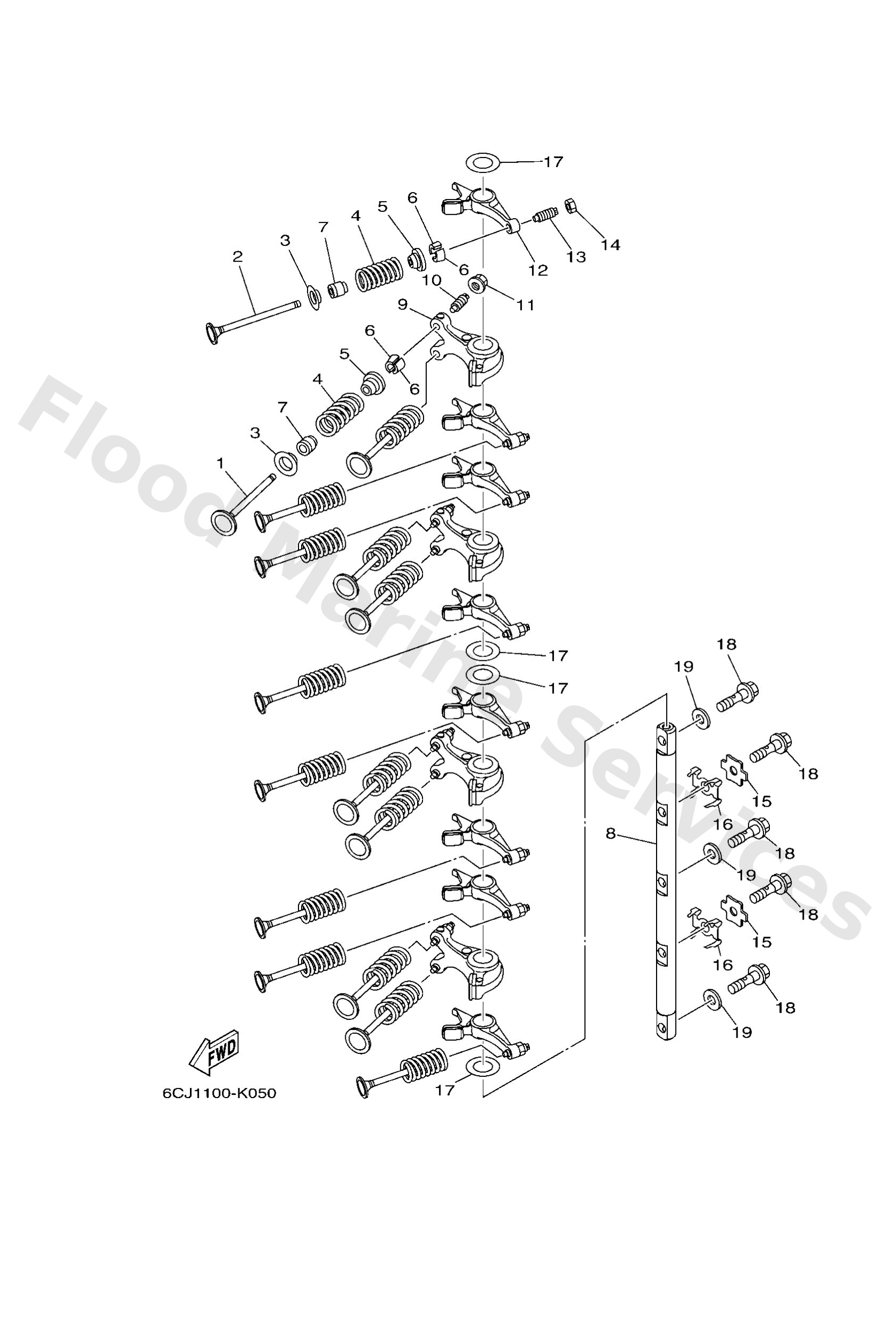

Diagram: VALVE
Parts List
Reference
Description
Price
1
6CJ1211100
Valve, intake
Loading…
↗
2
6CJ1212110
Valve, exhaust
Loading…
↗
3
6CJ1211600
Seat, valve spring
Loading…
↗
4
6CJ1211300
Spring, valve inner
Loading…
↗
5
3LD1211700
Retainer, valve spring
Loading…
↗
6
3LD1211800
Cotter, valve
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
6CJ1214600
Shaft, rocker
Loading…
↗
9
6CJ1215100
Arm, valve rocker
Loading…
↗
10
6C51215900
Screw, valve adjusting
Loading…
↗
11
6C51215800
Nut, lock
Loading…
↗
12
6CJ1216100
Arm, valve rocker 2
Loading…
↗
13
64J1215900
Screw, valve adjusting
Loading…
↗
14
62Y1215800
Nut, lock
Loading…
↗
15
6CJ1223100
Guide, stopper 1
Loading…
↗
16
6CJ1223300
Plate, guide stopper 1
Loading…
↗
17
9020116014
Washer, plate
Loading…
↗
18
9040108011
Bolt, union
Loading…
↗
19
9299008200
Ybs66-8 washer, plain
