F4AMH (2003)
VALVE

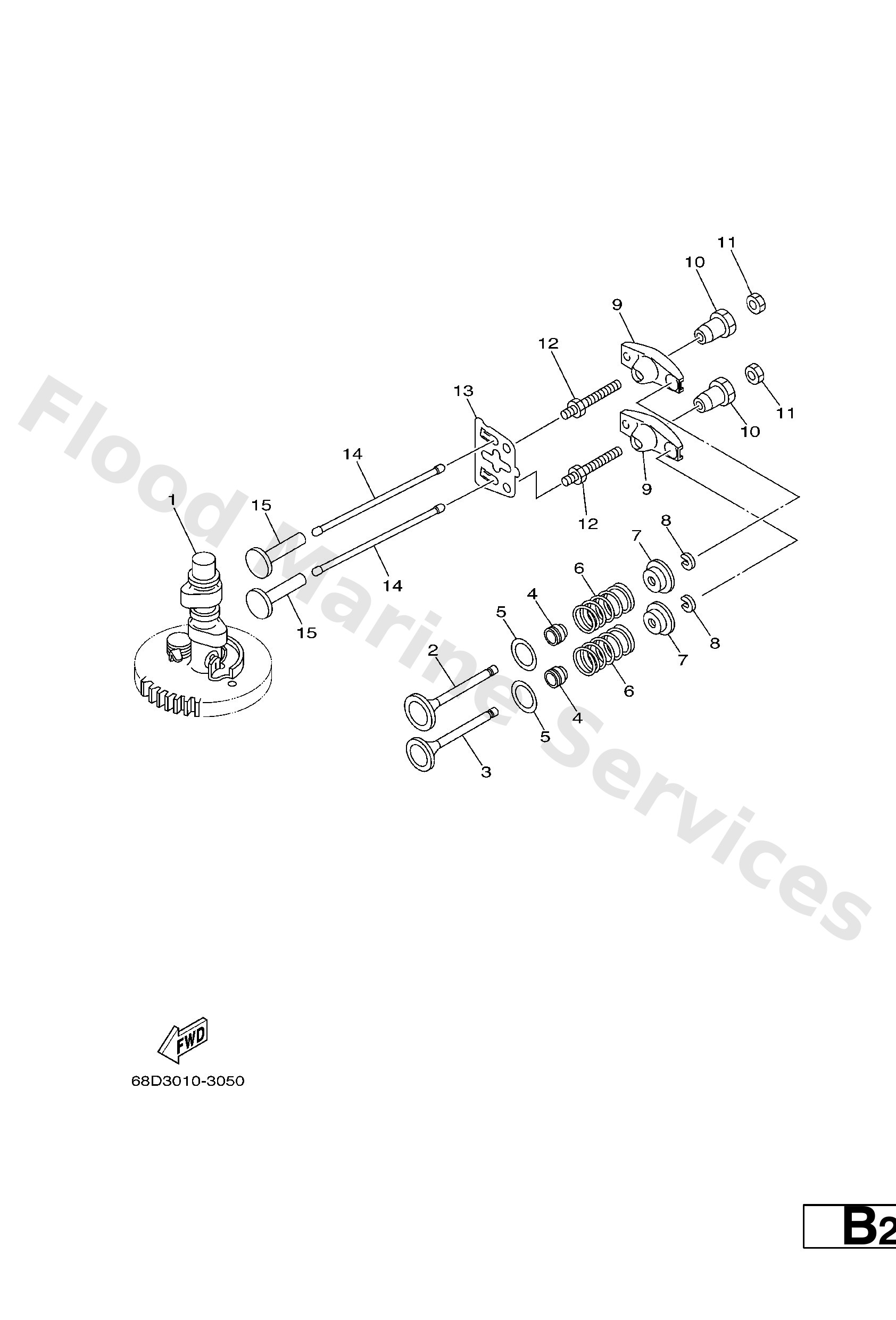

Diagram: VALVE
Parts List
Reference
Description
Price
1
68D−E2170−00
Cam shaft assembly
Loading…
↗
2
67D−12111−00
Valve, intake
Loading…
↗
3
67D−12121−00
Valve, exhaust
Loading…
↗
4
51Y−12119−00
Seal, valve stem
Loading…
↗
5
68T−12116−00
Seat, valve spring
Loading…
↗
6
68D−E2113−00
Spring, valve inne
Loading…
↗
7
7NJ−12117−00
Retainer, valve spring
Loading…
↗
8
7NJ−12118−00
Cotter, valve
Loading…
↗
9
67D−12151−00
Arm, valve rocker
Loading…
↗
10
7FK−12165−00
Pivot, rocker arm
Loading…
↗
11
7FK−12158−00
Nut, lock
Loading…
↗
12
67D−12157−00
Bolt
Loading…
↗
13
68D−E2155−00
5−
Loading…
↗
14
67D−12154−00
Rod, valve push
Loading…
↗
15
JA9−12153−00
Lifter, valve
Loading…
↗
