F50DET (2010)
VALVE

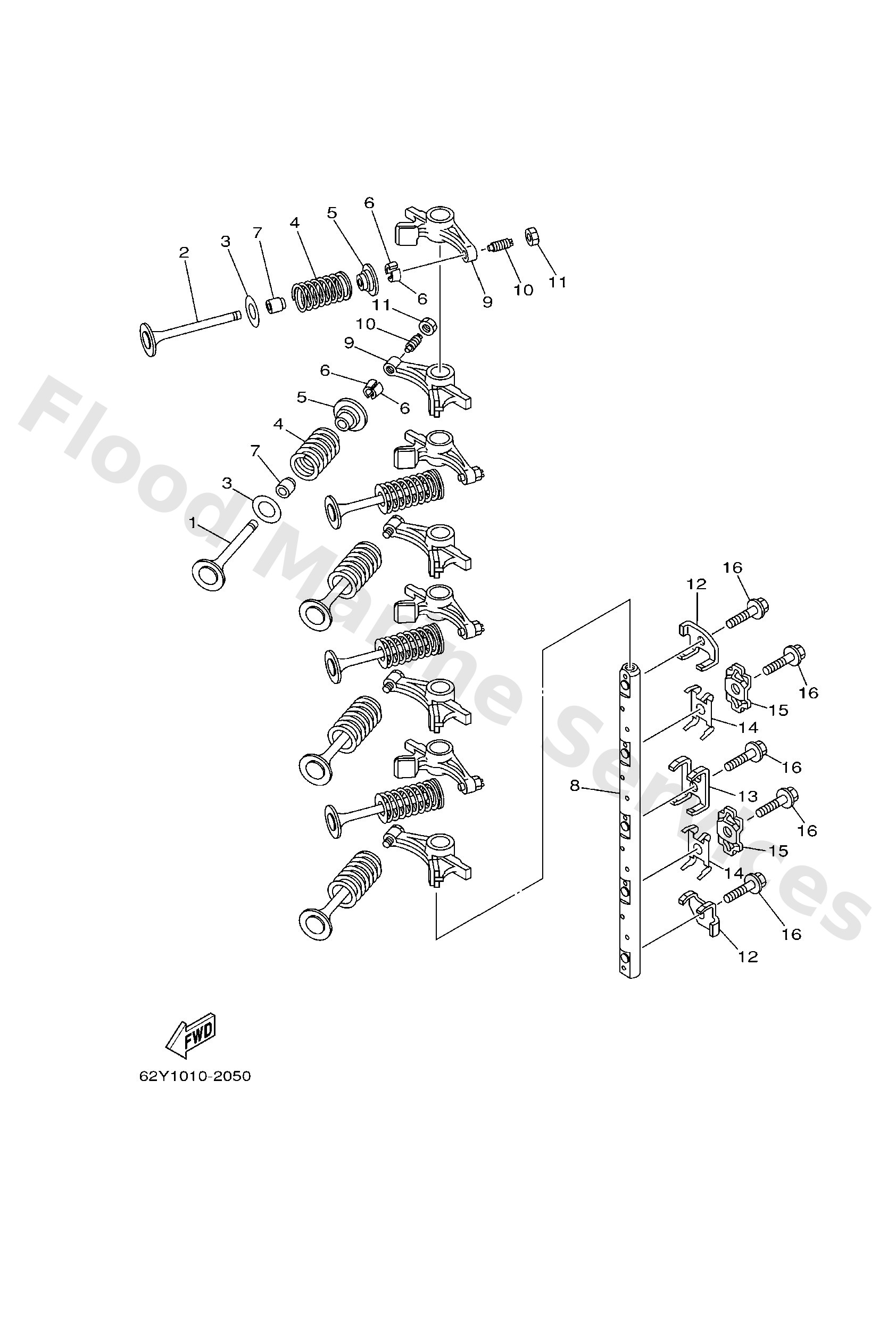

Diagram: VALVE
Parts List
Reference
Description
Price
1
64J1211100
Valve, intake
Loading…
↗
2
64J1212100
Valve, exhaust
Loading…
↗
3
62Y1211600
Seat, valve spring
Loading…
↗
4
51Y1211400
Spring, valve outer
Loading…
↗
5
30X1211700
Retainer, valve spring
Loading…
↗
6
30X1211800
Cotter, valve
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
62Y1214600
Shaft, rocker
Loading…
↗
9
62Y1215100
Arm, valve rocker
Loading…
↗
10
64J1215900
Screw, valve adjusting
Loading…
↗
11
62Y1215800
Nut, lock
Loading…
↗
12
64J1223800
Plate, bolt stopper
Loading…
↗
13
64J1227900
Plate
Loading…
↗
14
62Y1221600
Spring
Loading…
↗
15
62Y1223100
Guide, stopper 1
Loading…
↗
16
9010908M63
Bolt(62y)
Loading…
↗
