F50HED (2024)
VALVE

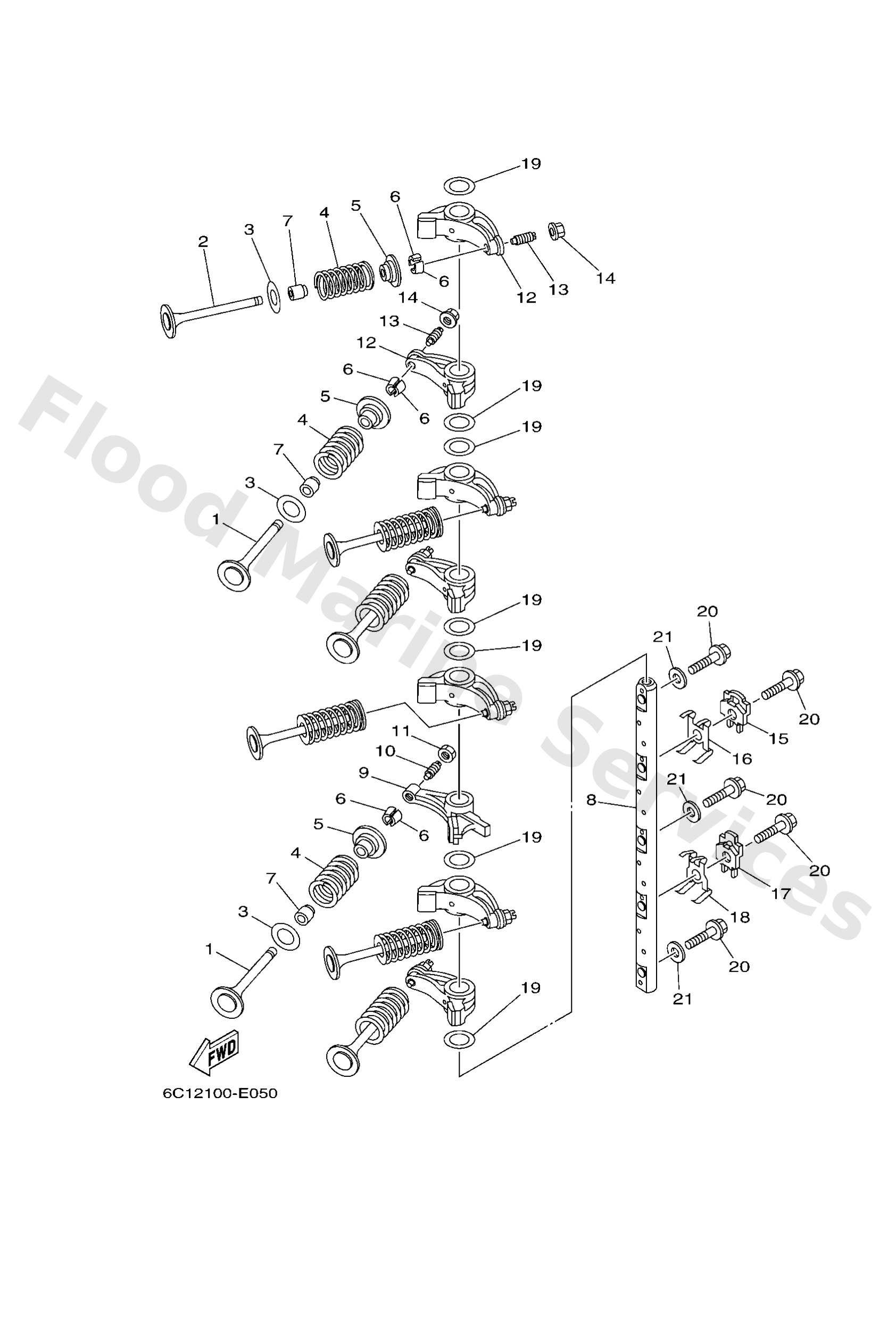

Diagram: VALVE
Parts List
Reference
Description
Price
1
69W1211100
Valve, intake
Loading…
↗
2
69W1212110
Valve, exhaust
Loading…
↗
3
62Y1211600
Seat, valve spring
Loading…
↗
4
51Y1211400
Spring, valve outer
Loading…
↗
5
30X1211700
Retainer, valve spring
Loading…
↗
6
30X1211800
Cotter, valve
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
6C51214600
Shaft, rocker
Loading…
↗
9
62Y1215100
Arm, valve rocker
Loading…
↗
10
64J1215900
Screw, valve adjusting
Loading…
↗
11
62Y1215800
Nut, lock
Loading…
↗
12
6C51215100
Arm, valve rocker
Loading…
↗
13
6C51215900
Screw, valve adjusting
Loading…
↗
14
6C51215800
Nut, lock
Loading…
↗
15
6C51223100
Guide, stopper 1
Loading…
↗
16
6C51223300
Plate, guide stopper 1
Loading…
↗
17
6C51224100
Guide, stopper 2
Loading…
↗
18
6C51224300
Plate, guide stopper 2
Loading…
↗
19
9020116014
Washer, plate
Loading…
↗
20
9010508060
Bolt, flange
Loading…
↗
21
9299008200
Ybs66-8 washer, plain
Loading…
↗
