F5AMH (2023)
VALVE

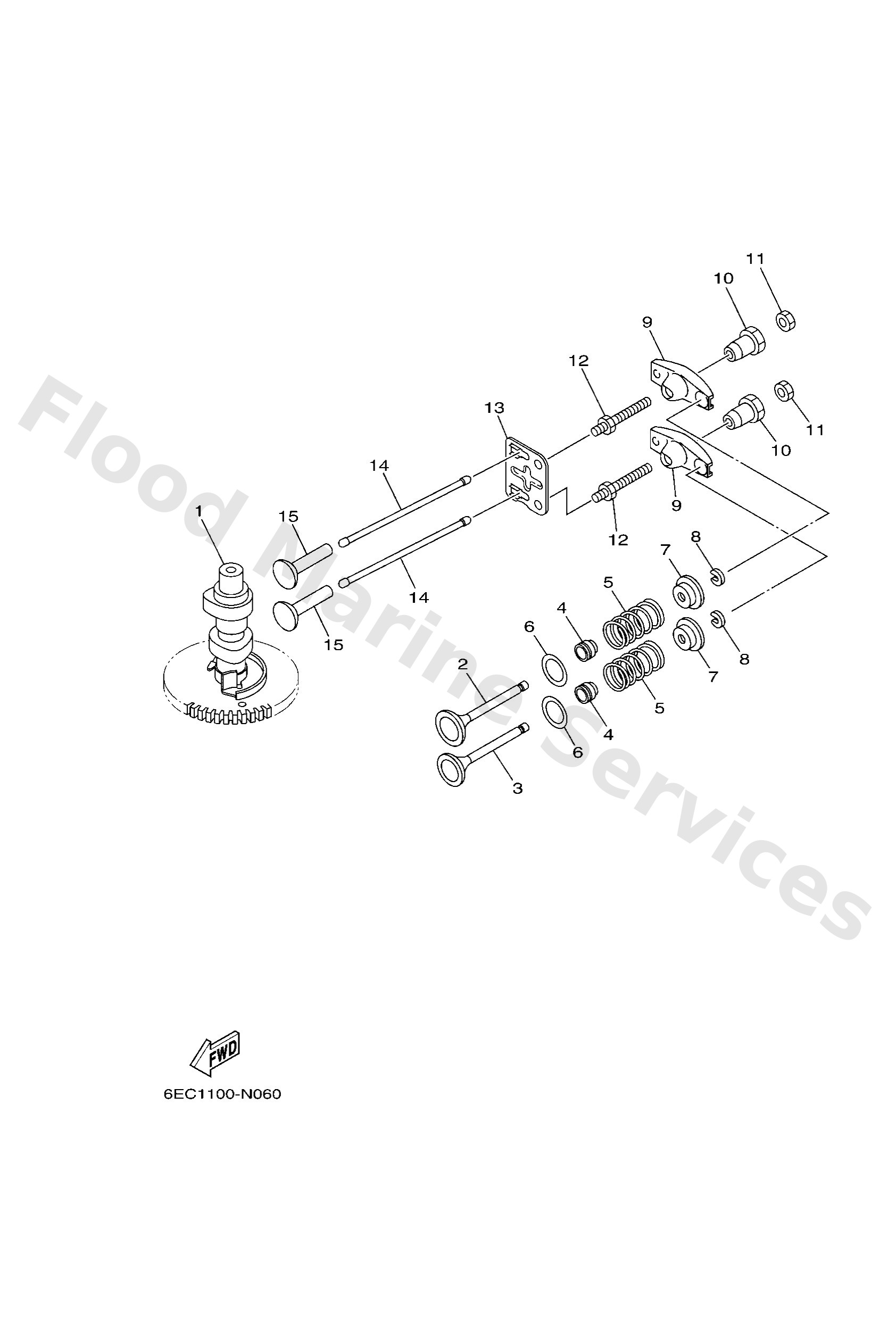

Diagram: VALVE
Parts List
Reference
Description
Price
1
6EEE217001
Camshaft assembly 1
Loading…
↗
2
6EEE211101
Valve, intake
Loading…
↗
3
6EEE212101
Valve, exhaust
Loading…
↗
4
6EEE211900
Seal, valve stem
Loading…
↗
5
6EEE211300
Spring, valve inne
Loading…
↗
6
6EEE211600
Seat, valve spring
Loading…
↗
7
7NJ1211700
Retainer, valve spring
Loading…
↗
8
7NJ1211800
Cotter, valve
Loading…
↗
9
67D1215100
Arm, valve rocker
Loading…
↗
10
6EEE216500
Pivot, rocker arm
Loading…
↗
11
6EEE215800
Nut, lock
Loading…
↗
12
67D1215700
Bolt
Loading…
↗
13
6EEE215500
Guide, push rod
Loading…
↗
14
6EEE215400
Rod, valve push
Loading…
↗
15
6EEE215300
Lifter, valve
Loading…
↗
