F6AMH (2005)
VALVE

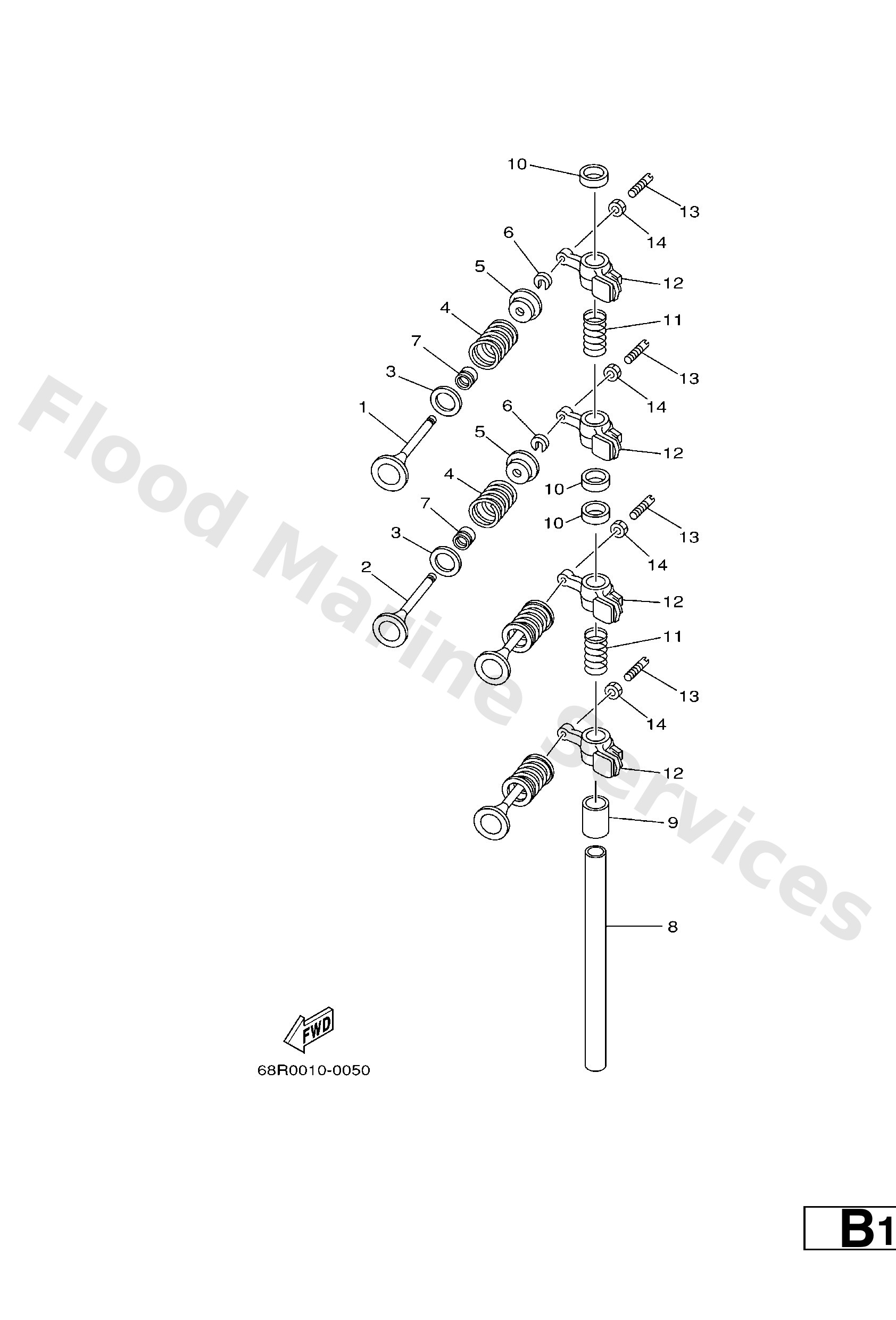

Diagram: VALVE
Parts List
Reference
Description
Price
1
67D1211100
Valve, intake
Loading…
↗
2
67D1212100
Valve, exhaust
Loading…
↗
3
68T1211600
Seat, valve spring
Loading…
↗
4
60RE211300
Spring, valve inne
Loading…
↗
5
7NJ1211700
Retainer, valve spring
Loading…
↗
6
7NJ1211800
Cotter, valve
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
68T1214600
Shaft, rocker
Loading…
↗
9
9038713M56
Collar (6g8)
Loading…
↗
10
9038714M03
Collar
Loading…
↗
11
9050112M40
Spring, compression (6g8)
Loading…
↗
12
68T1215100
Arm, valve rocker
Loading…
↗
13
6G81215900
Screw, valve adjusting
Loading…
↗
14
6G81215800
Nut, lock
Loading…
↗
